AORUS 1851 B860 AORUS ELITE WIFI 7 ICE

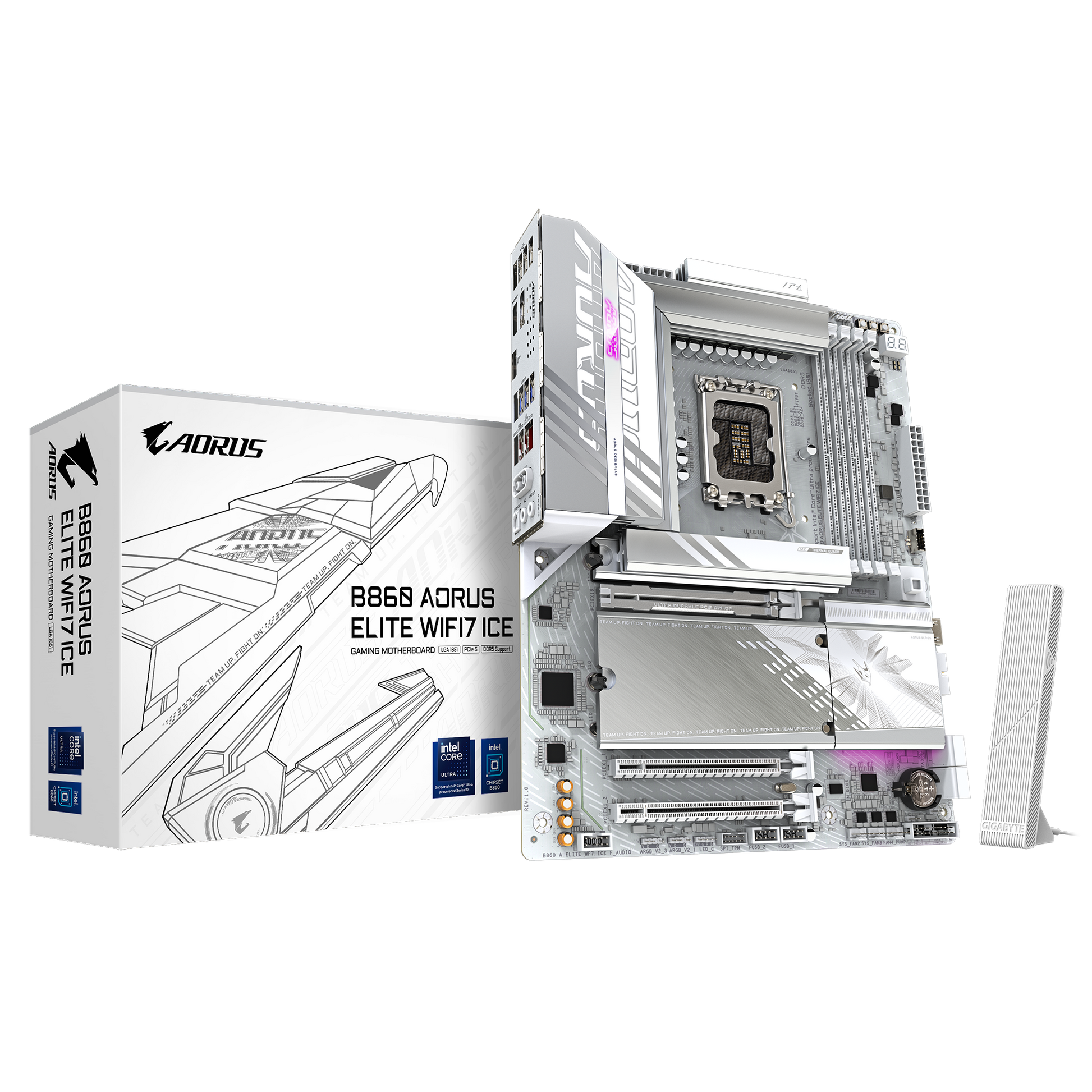

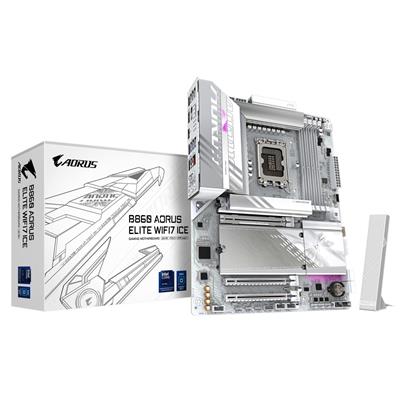

AORUS B860 Aorus Elite WiFi7 Ice Intel B860 LGA1851 DDR5 Wi-Fi 7 ATX Motherboard

The AORUS B860 Aorus Elite WiFi7 Ice is a ATX motherboard built around the Intel B860 chipset and LGA1851 processor socket. It is designed as a dependable foundation for a compatible Intel Core Ultra Series 2 gaming, home, creator or productivity PC.

With DDR5 memory support, 1 x PCIe 5.0 M.2 and 2 x PCIe 4.0 M.2, Realtek 2.5Gb Ethernet and modern PCI Express expansion, this board provides the core connectivity needed for a current custom system. Integrated Wi-Fi 7 and Bluetooth 5.4 provide convenient wireless networking.

Key Features

• LGA1851 processor socket with Intel B860 chipset
• 4 DDR5 memory slots with Up to DDR5-9200 OC support
• Maximum supported memory capacity of 256GB
• 1 x PCIe 5.0 x16 and 2 x PCIe 4.0 x16
• 1 x PCIe 5.0 M.2 and 2 x PCIe 4.0 M.2
• 4 x SATA 6Gb/s connections
• Realtek 2.5Gb Ethernet
• Wi-Fi 7
• Bluetooth 5.4
• Realtek 7.1-channel high-definition audio
• ATX form factor
• White ICE design, USB4 Type-C, Sensor Panel Link, EZ-Latch Plus and Q-Flash Plus

Processor and Chipset Platform

The LGA1851 socket and Intel B860 chipset support compatible Intel Core Ultra Series 2 processors. CPU compatibility can depend on the installed BIOS revision, so the processor support list should be checked when combining the board with a newly released CPU.

Memory Support

The board provides 4 DDR5 DIMM slots in a dual-channel configuration, supporting up to 256GB. Listed memory capability reaches Up to DDR5-9200 OC. Actual available speeds depend on the installed processor, memory kit, BIOS and selected XMP or EXPO profile.

PCI Express Expansion

1 x PCIe 5.0 x16 and 2 x PCIe 4.0 x16. This provides a suitable connection for a compatible graphics card while additional slots can support expansion hardware such as capture, sound or networking cards where the board layout allows.

Fast M.2 and SATA Storage

1 x PCIe 5.0 M.2 and 2 x PCIe 4.0 M.2. The board also includes 4 SATA 6Gb/s ports for compatible 2.5 inch SSDs, hard drives and other SATA devices. RAID support for compatible SATA and NVMe storage

Networking and Wireless Connectivity

Wired networking is provided by Realtek 2.5Gb Ethernet. The integrated Wi-Fi 7 and Bluetooth 5.4 connections support cable-free networking and compatible wireless peripherals.

Audio and Display Connectivity

Realtek 7.1-channel high-definition audio provides onboard sound for speakers, headsets and gaming audio. Any HDMI or DisplayPort connections on the motherboard require a processor with compatible integrated graphics and do not operate from a CPU that has no integrated display capability.

Cooling, RGB and PC Building Features

White ICE design, USB4 Type-C, Sensor Panel Link, EZ-Latch Plus and Q-Flash Plus. 3 x addressable RGB and 1 x RGB header. Fan headers and UEFI control options allow compatible case fans and CPU cooling hardware to be configured for balanced temperatures and acoustics.

Core Specification

Networking and Connectivity

Physical and Product Information

Typical Package Contents

• Motherboard
• Quick installation guide or user manual
• SATA data cable(s)
• M.2 mounting hardware
• Wi-Fi antenna

Please note: Processor support, memory speeds, PCI Express lane allocation and M.2 availability can vary according to the installed CPU and BIOS. Check case compatibility for the stated form factor and confirm that the power supply includes the required motherboard and CPU power connectors.
