ASUS 1700 PRIME B760M-A D4-CSM M-ATX

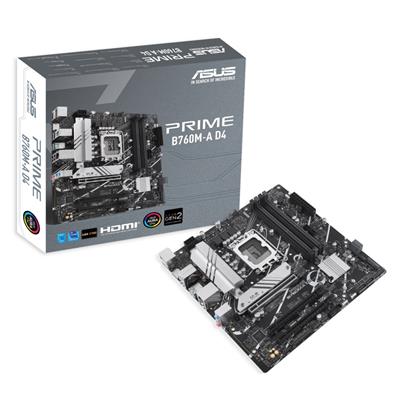

ASUS Prime B760M-A D4-CSM Intel B760 LGA1700 DDR4 Micro ATX Motherboard

The ASUS Prime B760M-A D4-CSM is a Micro ATX motherboard built around the Intel B760 chipset and LGA1700 processor socket. It is designed as a dependable foundation for a compatible Intel Core 12th, 13th and 14th Generation gaming, home, creator or productivity PC.

With DDR4 memory support, 2 x PCIe 4.0 M.2, Realtek 2.5Gb Ethernet and modern PCI Express expansion, this board provides the core connectivity needed for a current custom system.

Key Features

• LGA1700 processor socket with Intel B760 chipset
• 4 DDR4 memory slots with Up to DDR4-5333 OC support
• Maximum supported memory capacity of 128GB
• PCIe 4.0 expansion with a reinforced graphics slot
• 2 x PCIe 4.0 M.2
• 4 x SATA 6Gb/s connections
• Realtek 2.5Gb Ethernet
• Realtek 7.1-channel high-definition audio
• Micro ATX form factor
• ASUS Corporate Stable Model support, 5X Protection III, Aura Sync and dual M.2

Processor and Chipset Platform

The LGA1700 socket and Intel B760 chipset support compatible Intel Core 12th, 13th and 14th Generation processors. CPU compatibility can depend on the installed BIOS revision, so the processor support list should be checked when combining the board with a newly released CPU.

Memory Support

The board provides 4 DDR4 DIMM slots in a dual-channel configuration, supporting up to 128GB. Listed memory capability reaches Up to DDR4-5333 OC. Actual available speeds depend on the installed processor, memory kit, BIOS and selected XMP or EXPO profile.

PCI Express Expansion

PCIe 4.0 expansion with a reinforced graphics slot. This provides a suitable connection for a compatible graphics card while additional slots can support expansion hardware such as capture, sound or networking cards where the board layout allows.

Fast M.2 and SATA Storage

2 x PCIe 4.0 M.2. The board also includes 4 SATA 6Gb/s ports for compatible 2.5 inch SSDs, hard drives and other SATA devices. RAID support for compatible SATA and NVMe storage

Networking and Wireless Connectivity

Wired networking is provided by Realtek 2.5Gb Ethernet. This model is intended for a wired network connection unless a separate wireless adapter is fitted.

Audio and Display Connectivity

Realtek 7.1-channel high-definition audio provides onboard sound for speakers, headsets and gaming audio. Any HDMI or DisplayPort connections on the motherboard require a processor with compatible integrated graphics and do not operate from a CPU that has no integrated display capability.

Cooling, RGB and PC Building Features

ASUS Corporate Stable Model support, 5X Protection III, Aura Sync and dual M.2. 3 x Addressable Gen 2 and 1 x Aura RGB header. Fan headers and UEFI control options allow compatible case fans and CPU cooling hardware to be configured for balanced temperatures and acoustics.

Core Specification

Networking and Connectivity

Physical and Product Information

Typical Package Contents

• Motherboard
• Quick installation guide or user manual
• SATA data cable(s)
• M.2 mounting hardware

Please note: Processor support, memory speeds, PCI Express lane allocation and M.2 availability can vary according to the installed CPU and BIOS. Check case compatibility for the stated form factor and confirm that the power supply includes the required motherboard and CPU power connectors.
