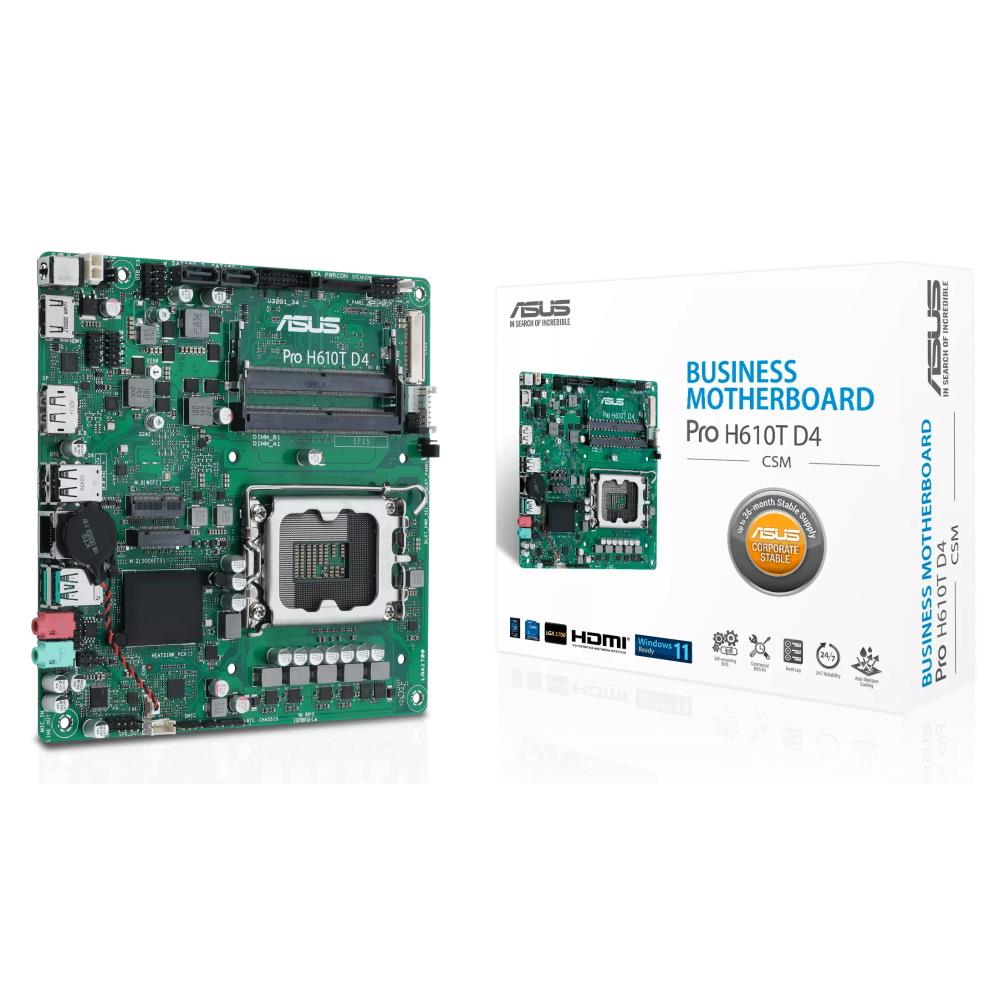

ASUS Pro H610T D4-CSM Thin Mini ITX Motherboard

The ASUS Pro H610T D4-CSM Thin Mini ITX Motherboard is a Thin Mini ITX motherboard based on the Intel H610 chipset and Intel LGA 1700 processor socket. It provides a foundation for 12th Generation Intel Core, Pentium Gold and Celeron processors up to 65W, with memory, storage, expansion, networking and rear I/O options for a compatible custom PC.

Key Features

• Intel LGA 1700
• Intel H610
• Thin Mini ITX
• 12th Generation Intel Core, Pentium Gold and Celeron processors up to 65W
• 2 x DDR4 SO-DIMM slots, up to 64GB, dual channel, up to DDR4-3200
• Supports external DC input for compact all-in-one and thin-client systems
• Intel 1Gb Ethernet
• Realtek high definition audio
• 1 x M.2 E-key slot for a wireless module
• 1 x M.2 M-key slot
• 2 x SATA 6Gb/s ports
• 1 x HDMI
• 1 x DisplayPort
• 1 x LVDS connector
• ASUS Corporate Stable Model programme
• ASUS Control Center Express
• Self-recovering BIOS
• TPM support
• Enhanced business security

Processor and Memory Platform

The Intel LGA 1700 socket and Intel H610 platform support 12th Generation Intel Core, Pentium Gold and Celeron processors up to 65W.

Memory support is specified as 2 x DDR4 SO-DIMM slots, up to 64GB, dual channel, up to DDR4-3200. The final supported speed and capacity depend on the processor, memory kit and BIOS configuration.

Power Delivery and Cooling

The board uses Supports external DC input for compact all-in-one and thin-client systems to supply the processor and platform components. Heatsinks and fan controls support cooling across a suitable completed build.

Expansion Support

The motherboard provides the following expansion connections for compatible graphics cards and add-in devices:

• 1 x M.2 E-key slot for a wireless module

Storage Connectivity

M.2 and SATA connections provide options for fast solid-state storage and additional compatible drives.

• 1 x M.2 M-key slot
• 2 x SATA 6Gb/s ports

Networking

Intel 1Gb Ethernet provides wired and, where specified, wireless network connectivity for the completed PC.

Integrated Audio

Realtek high definition audio provides onboard sound for compatible speakers, headsets and audio equipment.

Rear I/O and Display Connections

Rear USB connectivity includes 2 x USB 3.2 Gen 2 Type-A and 2 x USB 2.0.

Available motherboard display outputs include 1 x HDMI, 1 x DisplayPort, 1 x LVDS connector and require a processor with compatible integrated graphics.

Additional Motherboard Features

• ASUS Corporate Stable Model programme
• ASUS Control Center Express
• Self-recovering BIOS
• TPM support
• Enhanced business security

Platform Specification

Expansion Slots

Storage Connections

Display Outputs

Package Contents

• Motherboard
• SATA and power cables
• I/O shield
• User documentation

Warranty and Product Information

Please note: Processor, memory, storage and expansion compatibility depend on the exact component model and motherboard BIOS version. Motherboard display outputs require a processor with supported integrated graphics.
