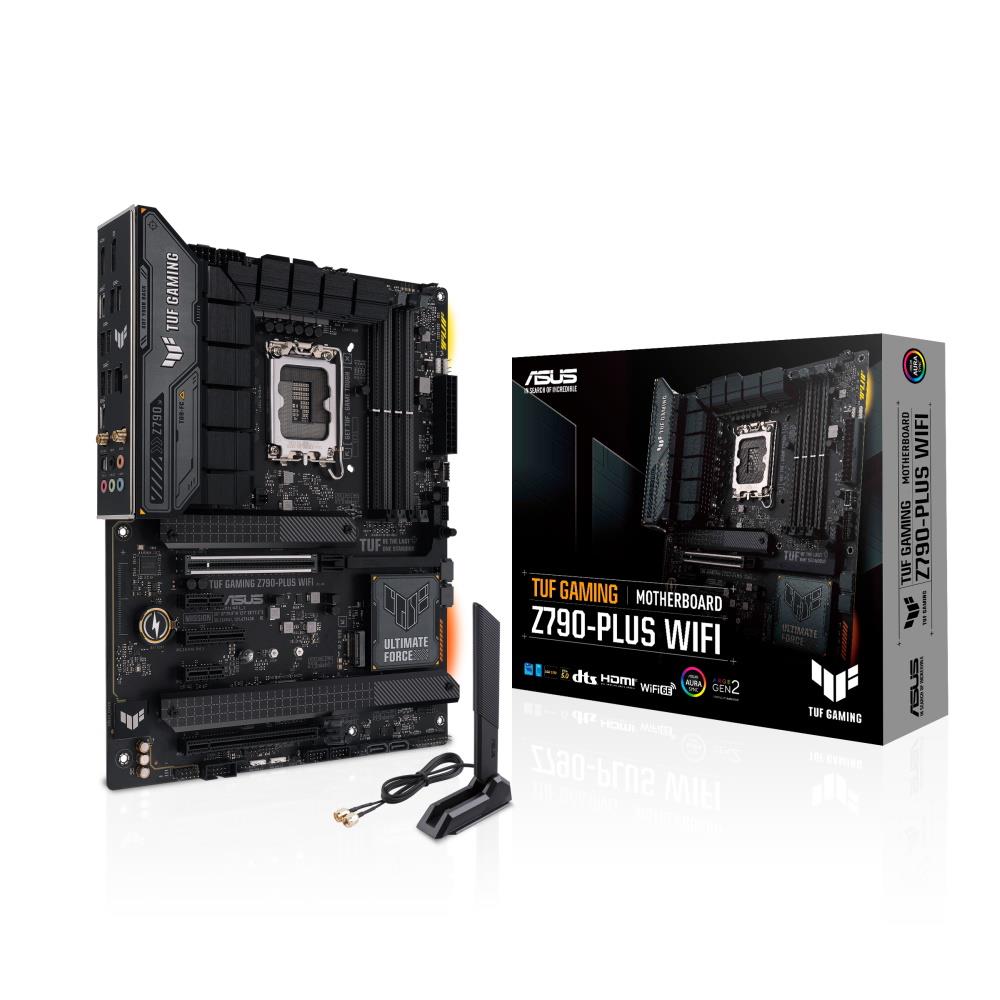

ASUS TUF Gaming Z790-Plus WiFi Intel Z790 LGA1700 DDR5 Wi-Fi 6E ATX Motherboard

The ASUS TUF Gaming Z790-Plus WiFi is a ATX motherboard built around the Intel Z790 chipset and LGA1700 processor socket. It is designed as a dependable foundation for a compatible Intel Core 12th, 13th and 14th Generation gaming, home, creator or productivity PC.

With DDR5 memory support, 4 x M.2, including three PCIe 4.0 and one PCIe 4.0/SATA slot, Intel 2.5Gb Ethernet and modern PCI Express expansion, this board provides the core connectivity needed for a current custom system. Integrated Wi-Fi 6E and Bluetooth 5.3 provide convenient wireless networking.

Key Features

• LGA1700 processor socket with Intel Z790 chipset
• 4 DDR5 memory slots with Up to DDR5-7200+ OC support
• Maximum supported memory capacity of 128GB
• 1 x PCIe 5.0 x16, 1 x PCIe 4.0 x16, 1 x PCIe 4.0 x4 and 2 x PCIe 3.0 x1
• 4 x M.2, including three PCIe 4.0 and one PCIe 4.0/SATA slot
• 4 x SATA 6Gb/s connections
• Intel 2.5Gb Ethernet
• Wi-Fi 6E
• Bluetooth 5.3
• Realtek S1200A 7.1-channel audio
• ATX form factor
• PCIe 5.0 graphics, AI Cooling II, BIOS FlashBack, Two-Way AI Noise Cancelation and PCIe Q-Release

Processor and Chipset Platform

The LGA1700 socket and Intel Z790 chipset support compatible Intel Core 12th, 13th and 14th Generation processors. CPU compatibility can depend on the installed BIOS revision, so the processor support list should be checked when combining the board with a newly released CPU.

Memory Support

The board provides 4 DDR5 DIMM slots in a dual-channel configuration, supporting up to 128GB. Listed memory capability reaches Up to DDR5-7200+ OC. Actual available speeds depend on the installed processor, memory kit, BIOS and selected XMP or EXPO profile.

PCI Express Expansion

1 x PCIe 5.0 x16, 1 x PCIe 4.0 x16, 1 x PCIe 4.0 x4 and 2 x PCIe 3.0 x1. This provides a suitable connection for a compatible graphics card while additional slots can support expansion hardware such as capture, sound or networking cards where the board layout allows.

Fast M.2 and SATA Storage

4 x M.2, including three PCIe 4.0 and one PCIe 4.0/SATA slot. The board also includes 4 SATA 6Gb/s ports for compatible 2.5 inch SSDs, hard drives and other SATA devices. RAID 0, 1, 5 and 10

Networking and Wireless Connectivity

Wired networking is provided by Intel 2.5Gb Ethernet. The integrated Wi-Fi 6E and Bluetooth 5.3 connections support cable-free networking and compatible wireless peripherals.

Audio and Display Connectivity

Realtek S1200A 7.1-channel audio provides onboard sound for speakers, headsets and gaming audio. Any HDMI or DisplayPort connections on the motherboard require a processor with compatible integrated graphics and do not operate from a CPU that has no integrated display capability.

Cooling, RGB and PC Building Features

PCIe 5.0 graphics, AI Cooling II, BIOS FlashBack, Two-Way AI Noise Cancelation and PCIe Q-Release. 3 x Addressable Gen 2 and 1 x Aura RGB header. Fan headers and UEFI control options allow compatible case fans and CPU cooling hardware to be configured for balanced temperatures and acoustics.

Core Specification

Networking and Connectivity

Physical and Product Information

Typical Package Contents

• Motherboard
• Quick installation guide or user manual
• SATA data cable(s)
• M.2 mounting hardware
• Wi-Fi antenna

Please note: Processor support, memory speeds, PCI Express lane allocation and M.2 availability can vary according to the installed CPU and BIOS. Check case compatibility for the stated form factor and confirm that the power supply includes the required motherboard and CPU power connectors.
