ASUS AM5 ROG B850-F GAMING WIFI7 NEO

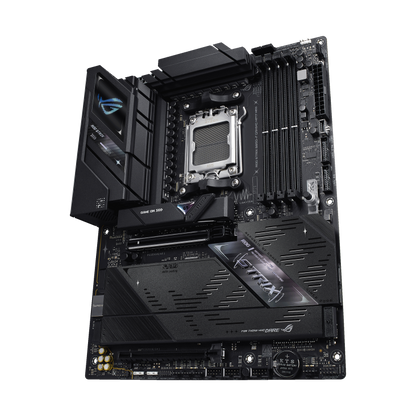

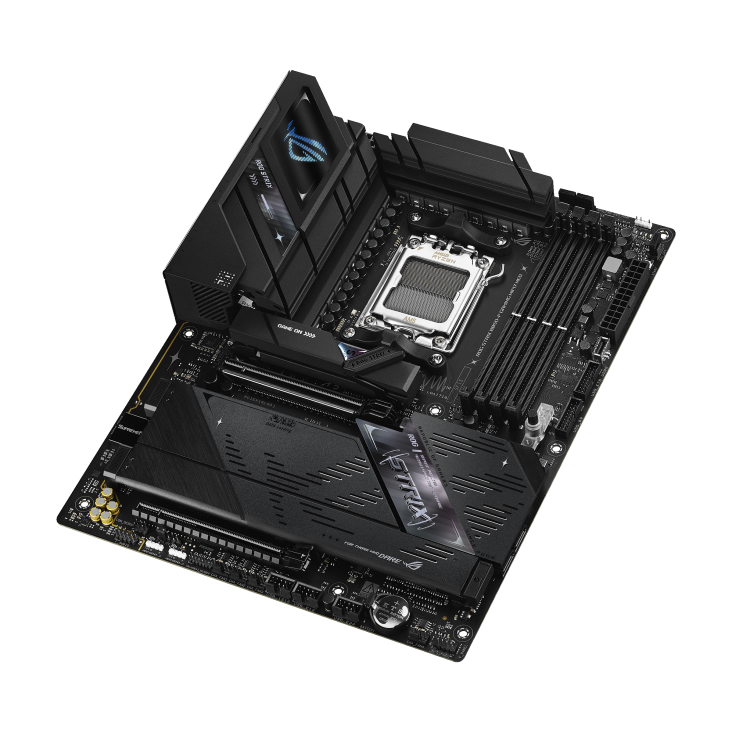

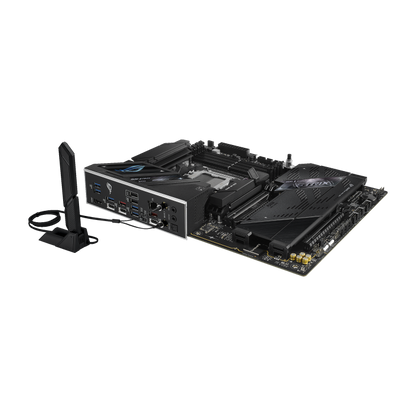

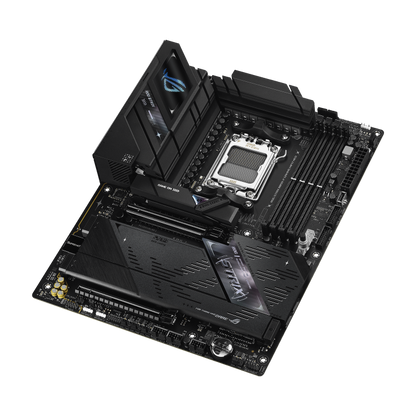

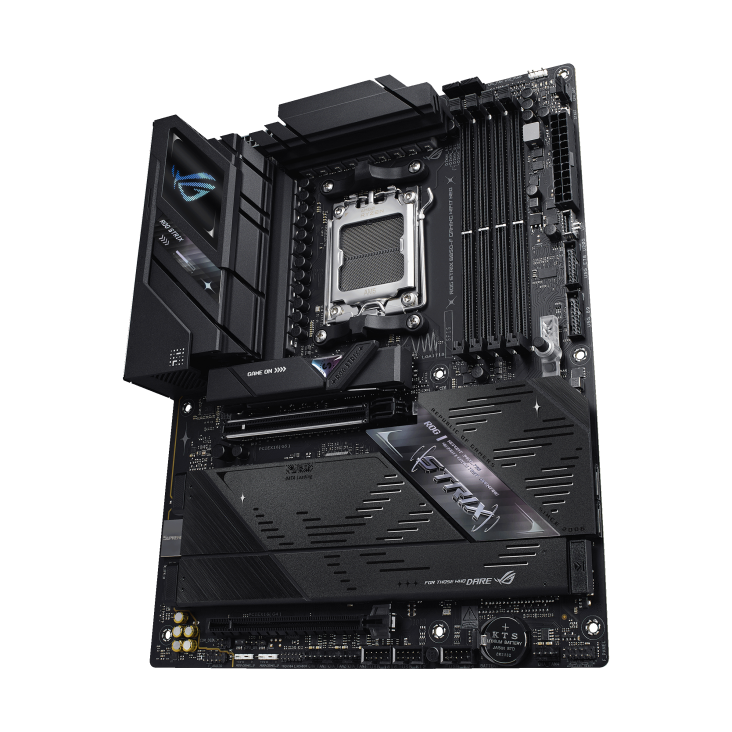

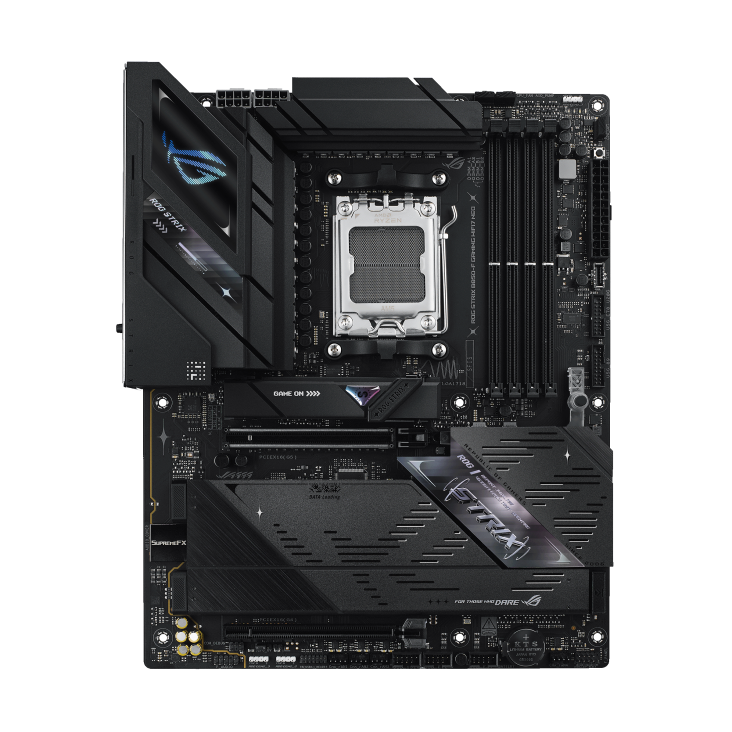

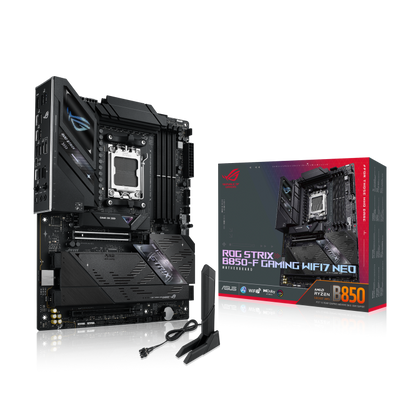

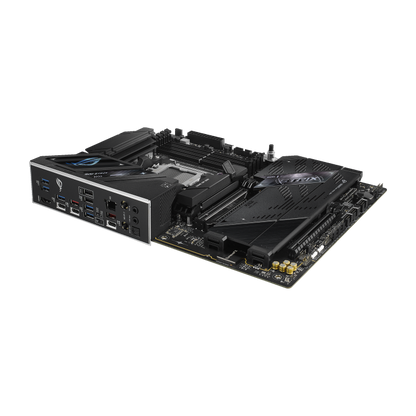

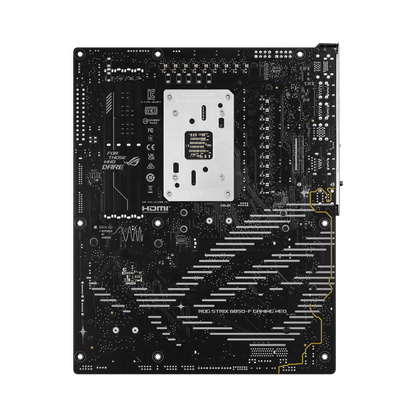

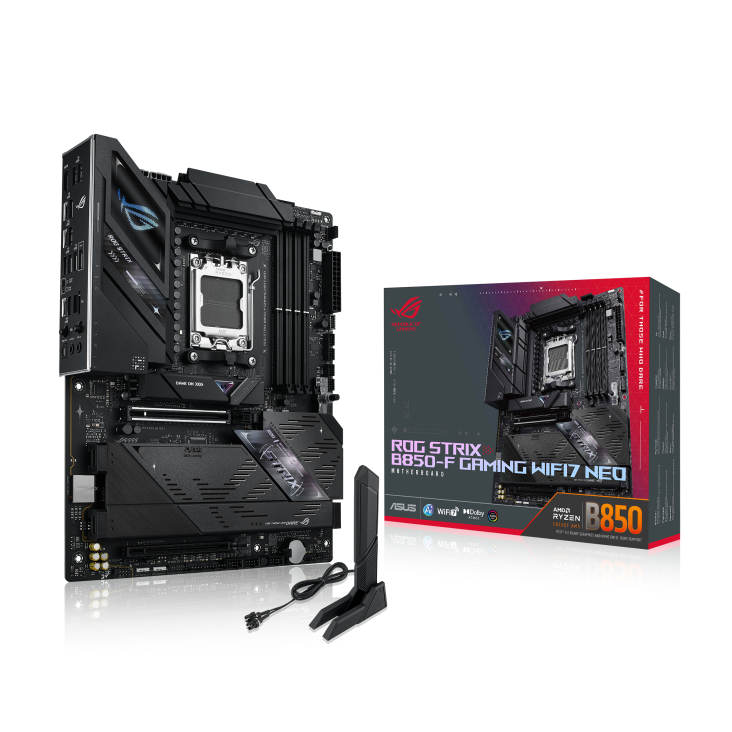

ASUS ROG Strix B850-F Gaming WiFi7 NEO AM5 ATX Motherboard

The ASUS ROG Strix B850-F Gaming WiFi7 NEO is a premium AMD AM5 ATX motherboard designed for powerful gaming PCs, enthusiast systems and high performance workstations.

Built around the AMD B850 chipset, it supports compatible AMD Ryzen 9000, 8000 and 7000 Series desktop processors, together with high speed DDR5 memory, PCI Express 5.0 graphics, multiple M.2 storage drives, WiFi 7 and 5 Gigabit Ethernet.

ROG SupremeFX audio, extensive USB connectivity and ASUS Q Design features make the motherboard equally suited to experienced builders and users assembling their first high performance system.

AMD AM5 Processor Support

The AM5 socket supports compatible AMD Ryzen 9000, Ryzen 8000 and Ryzen 7000 Series desktop processors. This gives builders access to a wide range of gaming, productivity and content creation processors across the current AMD AM5 platform.

Processor compatibility and available PCI Express features can vary depending on the exact Ryzen processor installed.

High Speed DDR5 Memory

Four DDR5 DIMM slots support up to 256GB of dual channel memory. Compatible memory kits can operate at speeds of up to 9000 MT/s when overclocked, depending on the processor, memory configuration and BIOS settings.

Support for AMD EXPO and ASUS Enhanced Memory Profile makes it easier to apply compatible performance profiles through the motherboard BIOS.

PCI Express 5.0 Graphics

When paired with a compatible AMD Ryzen 9000 or Ryzen 7000 Series processor, the primary reinforced expansion slot supports PCI Express 5.0 x16 connectivity for high performance graphics cards.

Selected Ryzen 8000 Series processors may operate the primary graphics slot at PCI Express 4.0 and with a reduced number of lanes. Buyers should check the specifications of their chosen processor when planning a system.

Four M.2 Storage Slots

The motherboard supports up to four M.2 solid state drives and two SATA storage devices. With a compatible Ryzen 9000 or Ryzen 7000 Series processor, the two primary M.2 slots support PCI Express 5.0 x4 storage.

The remaining M.2 slots support PCI Express 4.0 x4 storage, providing extensive capacity for fast operating system drives, games, applications and project files.

The M.2_3 slot shares bandwidth with the secondary PCI Express x16 slot. When a device is installed and operating in the secondary expansion slot, the M.2_3 storage slot is disabled.

WiFi 7 and 5 Gigabit Ethernet

Integrated WiFi 7 provides fast wireless networking across compatible 2.4GHz, 5GHz and 6GHz networks. Bluetooth 5.4 is also included for compatible headsets, controllers and other wireless accessories.

For wired networking, the Realtek 5 Gigabit Ethernet connection provides significantly more bandwidth than standard Gigabit Ethernet when used with compatible network equipment.

ASUS LANGuard helps provide additional protection and signal reliability for the wired network connection.

ROG SupremeFX Audio

The ROG SupremeFX audio system uses the Realtek ALC4080 codec and a Savitech SV3H712 amplifier to deliver detailed 7.1 channel high definition audio.

SupremeFX shielding, premium audio capacitors, impedance sensing and an optical S/PDIF output help provide clear sound for games, films, music and voice communication.

Extensive USB Connectivity

The rear panel provides twelve USB ports, including USB Type A and USB Type C connections operating at speeds of up to 10Gbps.

An internal USB 20Gbps connector supports a compatible front panel USB Type C port, while additional headers support up to four front USB 5Gbps ports and six USB 2.0 ports.

Flexible Cooling Control

Dedicated headers are provided for the CPU fan, optional CPU fan, AIO pump and four chassis fans. ASUS Fan Xpert 4 and AI Cooling II can help users configure cooling behaviour according to system temperature and noise preferences.

ASUS Q Design Features

The motherboard includes a collection of installation and troubleshooting features designed to simplify PC assembly and future upgrades.

• M.2 Q Latch for tool free M.2 drive installation
• M.2 Q Release and Q Slide mechanisms
• PCIe Slot Q Release Slim
• Q DIMM memory installation support
• Q Antenna connection system
• Q LED diagnostic indicators
• Pre mounted rear input and output shield
• BIOS FlashBack button
• Rear Clear CMOS button
• Onboard power button

Aura Sync Lighting Support

Three Addressable Gen 2 headers allow compatible fans, lighting strips and other illuminated components to be connected directly to the motherboard.

Lighting effects can be controlled and synchronised through ASUS Armoury Crate and Aura Sync software.

Key Features

• AMD B850 chipset
• AMD AM5 processor socket
• Supports compatible Ryzen 9000, 8000 and 7000 Series processors
• ATX motherboard form factor
• Four DDR5 memory slots
• Supports up to 256GB DDR5 memory
• Memory speeds up to 9000 MT/s when overclocked
• AMD EXPO and ASUS AEMP support
• PCI Express 5.0 x16 graphics support with compatible processors
• Four M.2 storage slots
• Two PCI Express 5.0 M.2 slots with compatible processors
• Two SATA 6Gbps connections
• AMD RAID 0, 1, 5 and 10 support
• Realtek 5 Gigabit Ethernet
• WiFi 7 wireless networking
• Bluetooth 5.4 with LE Audio support
• ROG SupremeFX ALC4080 audio
• Savitech headphone amplifier
• Optical S/PDIF audio output
• Twelve rear USB ports
• Front USB Type C 20Gbps connector
• BIOS FlashBack and Clear CMOS buttons
• Three Addressable Gen 2 lighting headers
• Pre mounted rear input and output shield
• Windows 11 support

Processor and Chipset Specifications

Memory Specifications

Expansion Slots

Storage Specifications

Networking

Audio Specifications

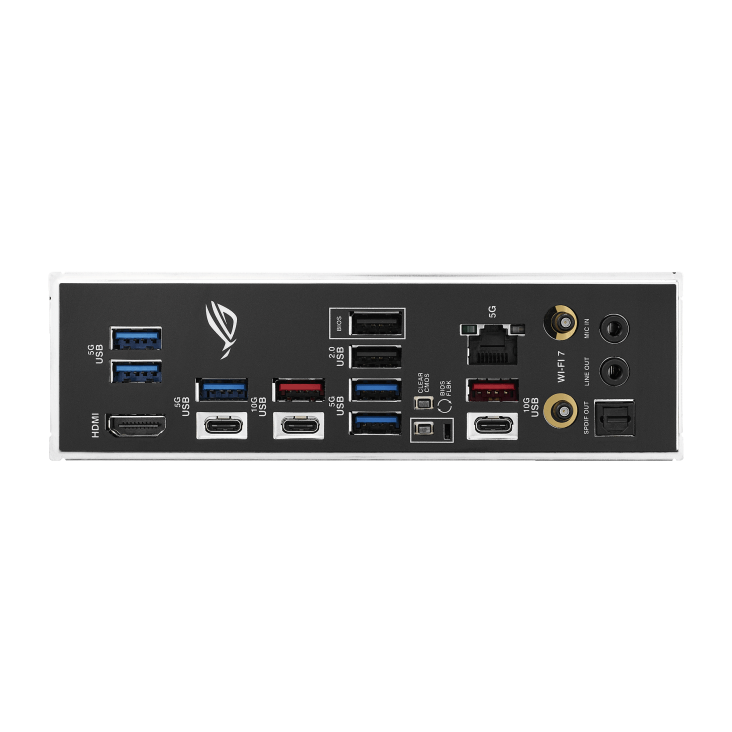

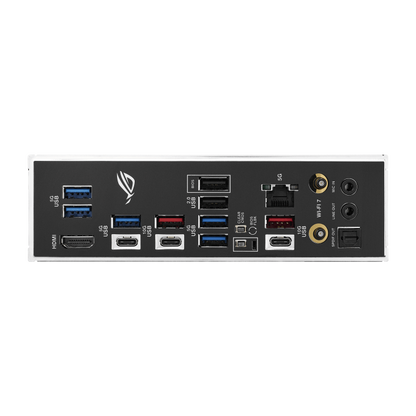

Rear Connections

• 2 x USB Type A 10Gbps ports
• 2 x USB Type C 10Gbps ports
• 5 x USB Type A 5Gbps ports
• 1 x USB Type C 5Gbps port
• 2 x USB Type A 2.0 ports
• 1 x HDMI 2.1 port supporting up to 4K at 60Hz
• 1 x Realtek 5 Gigabit Ethernet port
• WiFi antenna connections
• 2 x analogue audio connections
• 1 x optical S/PDIF output
• 1 x BIOS FlashBack button
• 1 x Clear CMOS button

Internal Connections

• 1 x 24 pin motherboard power connection
• 2 x 8 pin CPU power connections
• 1 x CPU fan header
• 1 x optional CPU fan header
• 1 x AIO pump header
• 4 x chassis fan headers
• 4 x M.2 storage slots
• 2 x SATA 6Gbps connections
• 1 x front USB Type C 20Gbps connector
• 2 x USB 5Gbps headers supporting four ports
• 3 x USB 2.0 headers supporting six ports
• 3 x Addressable Gen 2 lighting headers
• 1 x front panel audio header
• 1 x thermal sensor header
• 1 x Thunderbolt and USB4 expansion header
• 1 x onboard power button

BIOS

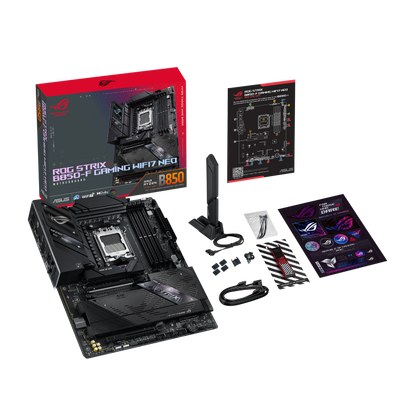

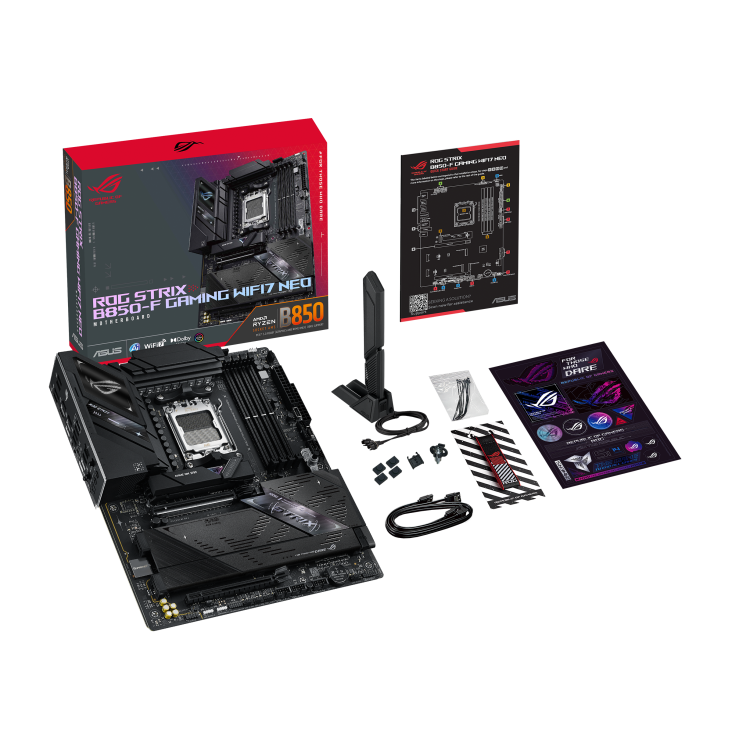

Package Contents

• ASUS ROG Strix B850-F Gaming WiFi7 NEO motherboard
• ASUS WiFi Q Antenna
• 2 x SATA 6Gbps cables
• Cable tie package
• M.2 Q Latch package
• M.2 Q Slide package
• ROG key chain
• ROG Strix sticker set
• 3 x M.2 rubber pads
• M.2 backplate rubber package
• Quick start guide

Compatibility note: Processor support, PCI Express lane allocation, integrated graphics output and M.2 performance vary according to the installed Ryzen processor. The HDMI output requires a processor with integrated graphics.

WiFi note: Full WiFi 7 functionality requires Windows 11 version 24H2 or later and compatible WiFi 7 network equipment. Windows 10 drivers are not provided for the integrated wireless module.

Memory note: Maximum memory speed depends on the processor, memory kit, BIOS version and number of installed DIMMs. Overclocked memory speeds are not guaranteed for every system configuration.
