ASUS AM5 TUF GAMING B650E-PLUS WIFI

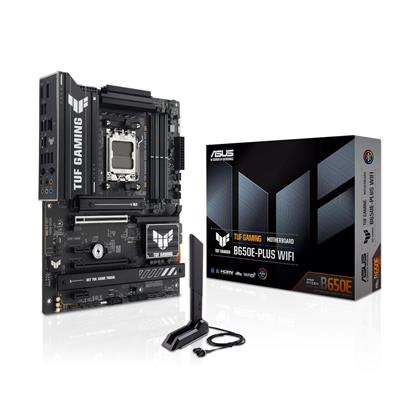

ASUS TUF Gaming B650E-Plus WiFi AMD B650 AM5 DDR5 Wi-Fi 6E ATX Motherboard

The ASUS TUF Gaming B650E-Plus WiFi is a ATX motherboard built around the AMD B650 chipset and AM5 processor socket. It is designed as a dependable foundation for a compatible AMD Ryzen gaming, home, creator or productivity PC.

With DDR5 memory support, 1 x PCIe 5.0 M.2 and 2 x PCIe 4.0 M.2, Realtek 2.5Gb Ethernet and modern PCI Express expansion, this board provides the core connectivity needed for a current custom system. Integrated Wi-Fi 6E and Bluetooth 5.3 provide convenient wireless networking.

Key Features

• AM5 processor socket with AMD B650 chipset
• 4 DDR5 memory slots with Up to DDR5-8000+ OC support
• Maximum supported memory capacity of 256GB
• 1 x PCIe 5.0 x16, 1 x PCIe 4.0 x16 and 1 x PCIe 4.0 x1
• 1 x PCIe 5.0 M.2 and 2 x PCIe 4.0 M.2
• 4 x SATA 6Gb/s connections
• Realtek 2.5Gb Ethernet
• Wi-Fi 6E
• Bluetooth 5.3
• Realtek ALC1220P 7.1-channel audio
• ATX form factor
• BIOS FlashBack, TUF LANGuard, PCIe 5.0 graphics and military-grade TUF components

Processor and Chipset Platform

The AM5 socket and AMD B650 chipset support compatible AMD Ryzen processors. CPU compatibility can depend on the installed BIOS revision, so the processor support list should be checked when combining the board with a newly released CPU.

Memory Support

The board provides 4 DDR5 DIMM slots in a dual-channel configuration, supporting up to 256GB. Listed memory capability reaches Up to DDR5-8000+ OC. Actual available speeds depend on the installed processor, memory kit, BIOS and selected XMP or EXPO profile.

PCI Express Expansion

1 x PCIe 5.0 x16, 1 x PCIe 4.0 x16 and 1 x PCIe 4.0 x1. This provides a suitable connection for a compatible graphics card while additional slots can support expansion hardware such as capture, sound or networking cards where the board layout allows.

Fast M.2 and SATA Storage

1 x PCIe 5.0 M.2 and 2 x PCIe 4.0 M.2. The board also includes 4 SATA 6Gb/s ports for compatible 2.5 inch SSDs, hard drives and other SATA devices. RAID support for compatible SATA and NVMe storage

Networking and Wireless Connectivity

Wired networking is provided by Realtek 2.5Gb Ethernet. The integrated Wi-Fi 6E and Bluetooth 5.3 connections support cable-free networking and compatible wireless peripherals.

Audio and Display Connectivity

Realtek ALC1220P 7.1-channel audio provides onboard sound for speakers, headsets and gaming audio. Any HDMI or DisplayPort connections on the motherboard require a processor with compatible integrated graphics and do not operate from a CPU that has no integrated display capability.

Cooling, RGB and PC Building Features

BIOS FlashBack, TUF LANGuard, PCIe 5.0 graphics and military-grade TUF components. 3 x Addressable Gen 2 headers. Fan headers and UEFI control options allow compatible case fans and CPU cooling hardware to be configured for balanced temperatures and acoustics.

Core Specification

Networking and Connectivity

Physical and Product Information

Typical Package Contents

• Motherboard
• Quick installation guide or user manual
• SATA data cable(s)
• M.2 mounting hardware
• Wi-Fi antenna

Please note: Processor support, memory speeds, PCI Express lane allocation and M.2 availability can vary according to the installed CPU and BIOS. Check case compatibility for the stated form factor and confirm that the power supply includes the required motherboard and CPU power connectors.
