ASUS AM5 X870 MAX GAMING WIFI7

ASUS X870 Max Gaming WiFi7 AMD X870E AM5 DDR5 Wi-Fi 7 Extended ATX Motherboard

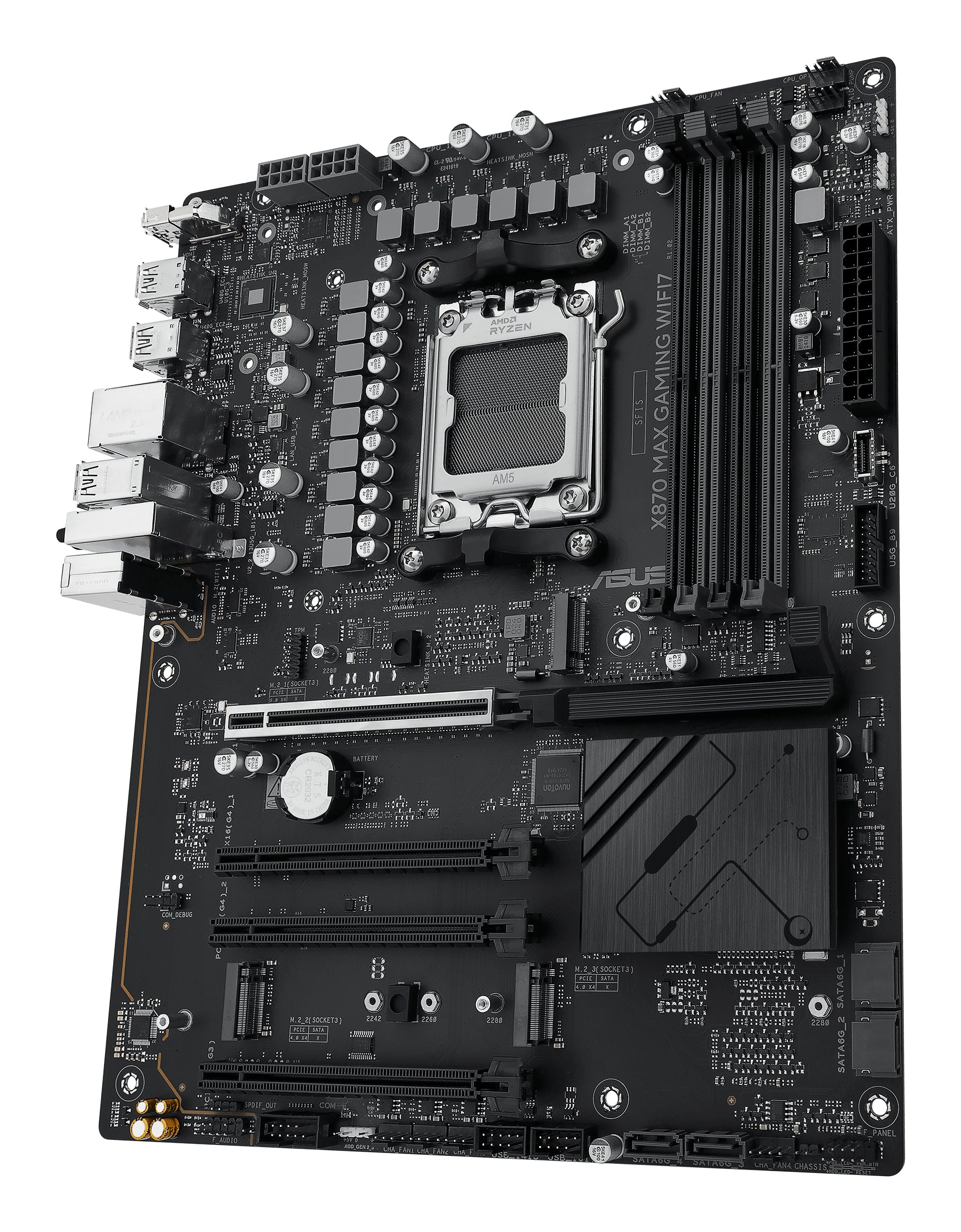

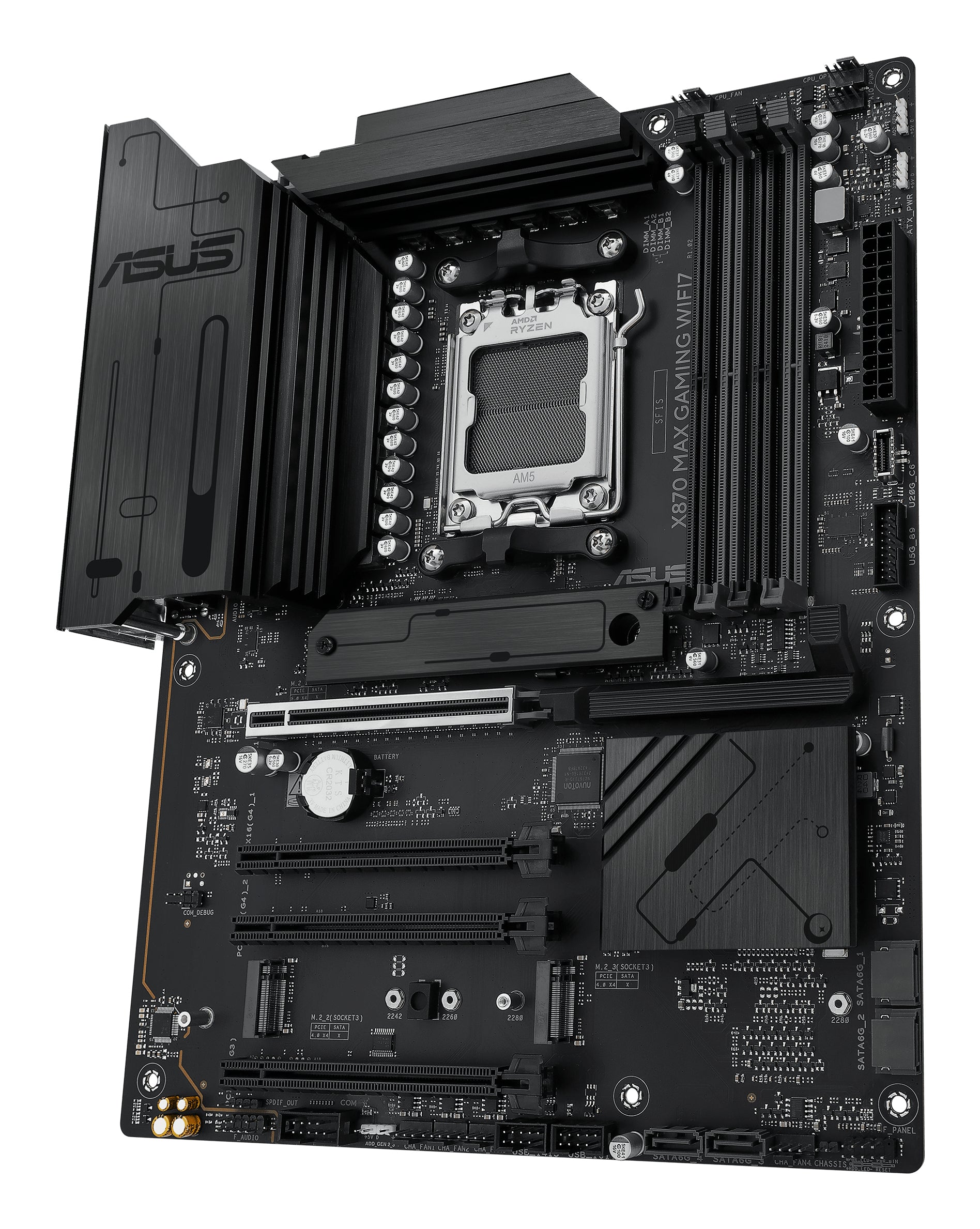

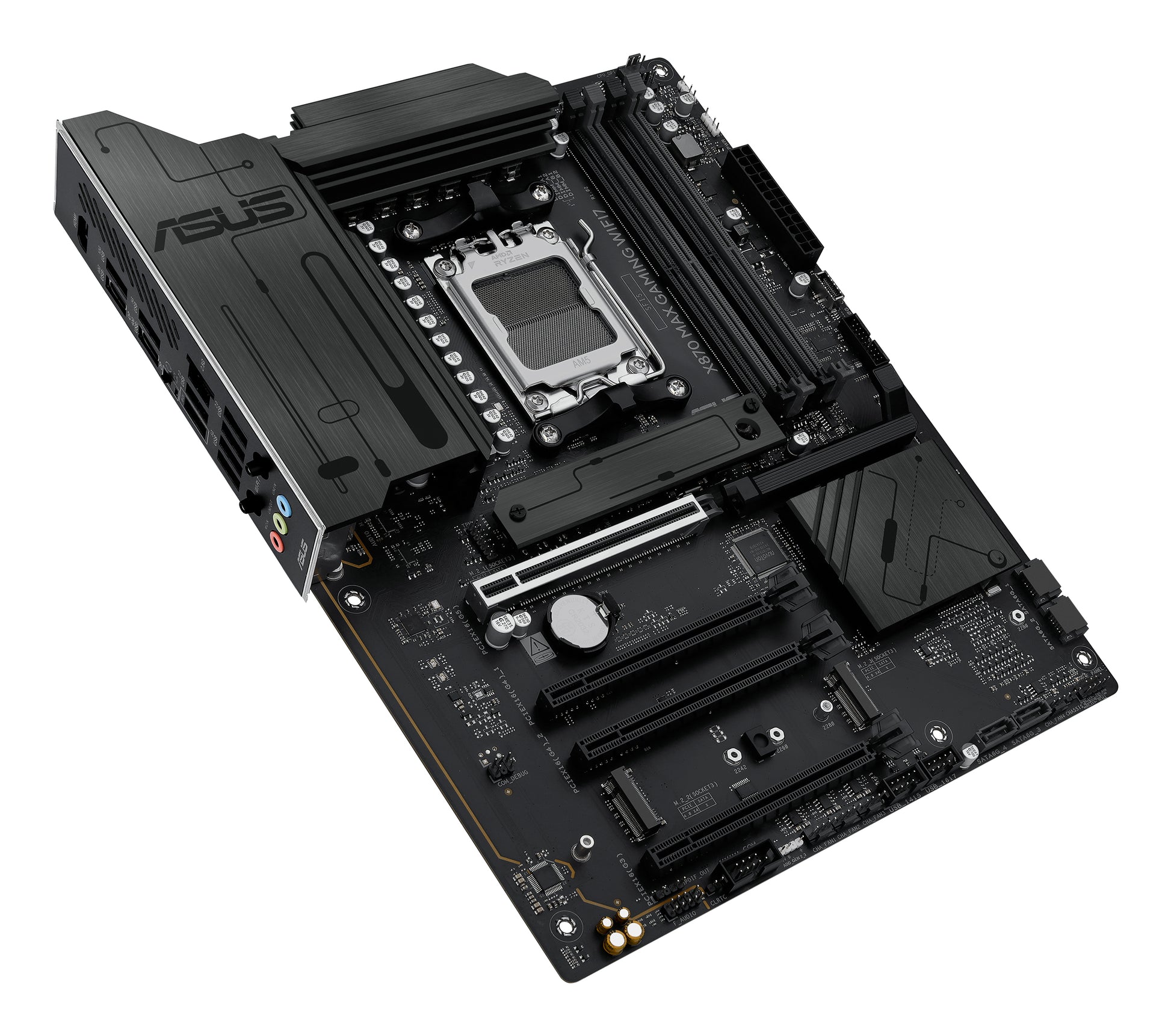

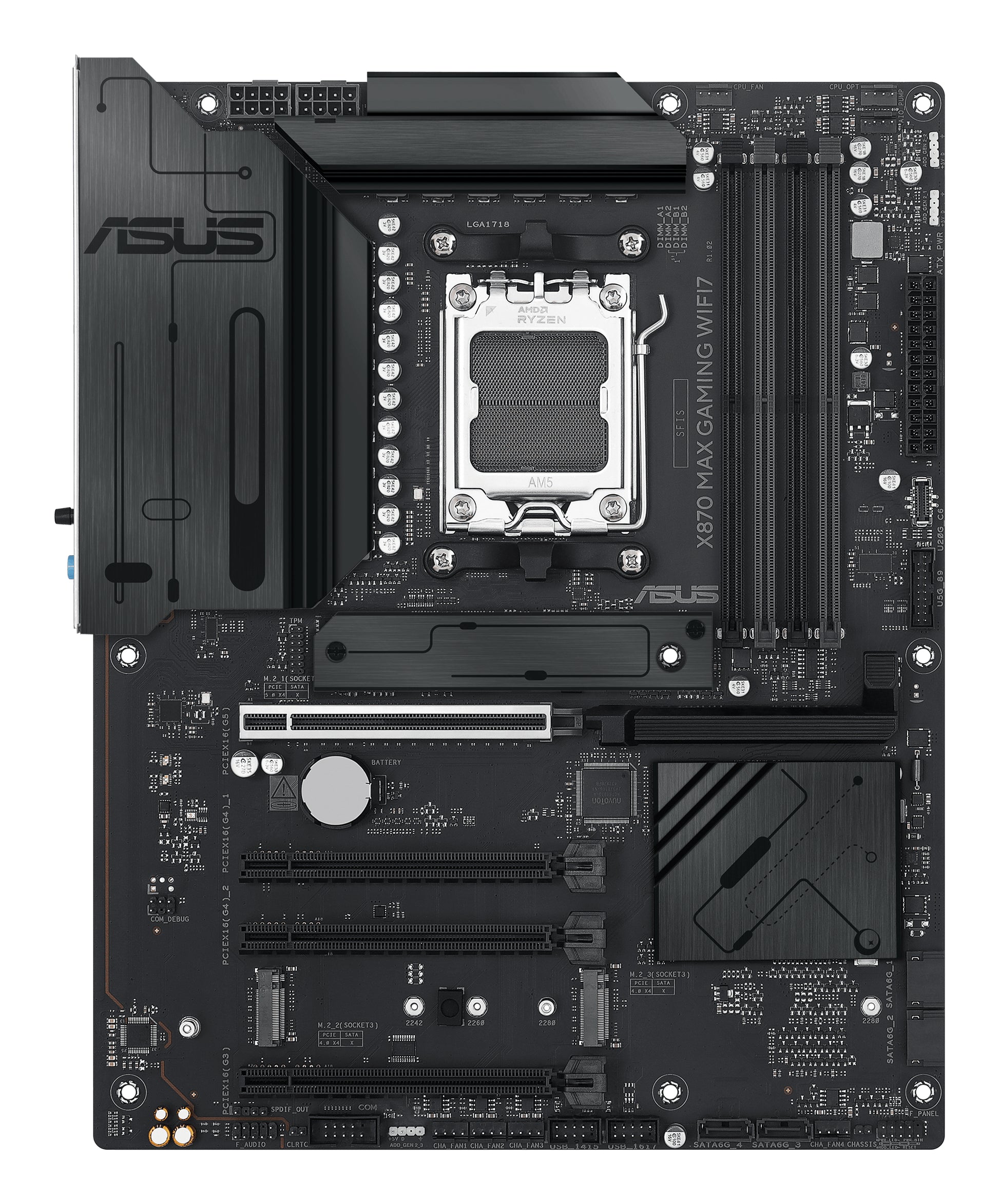

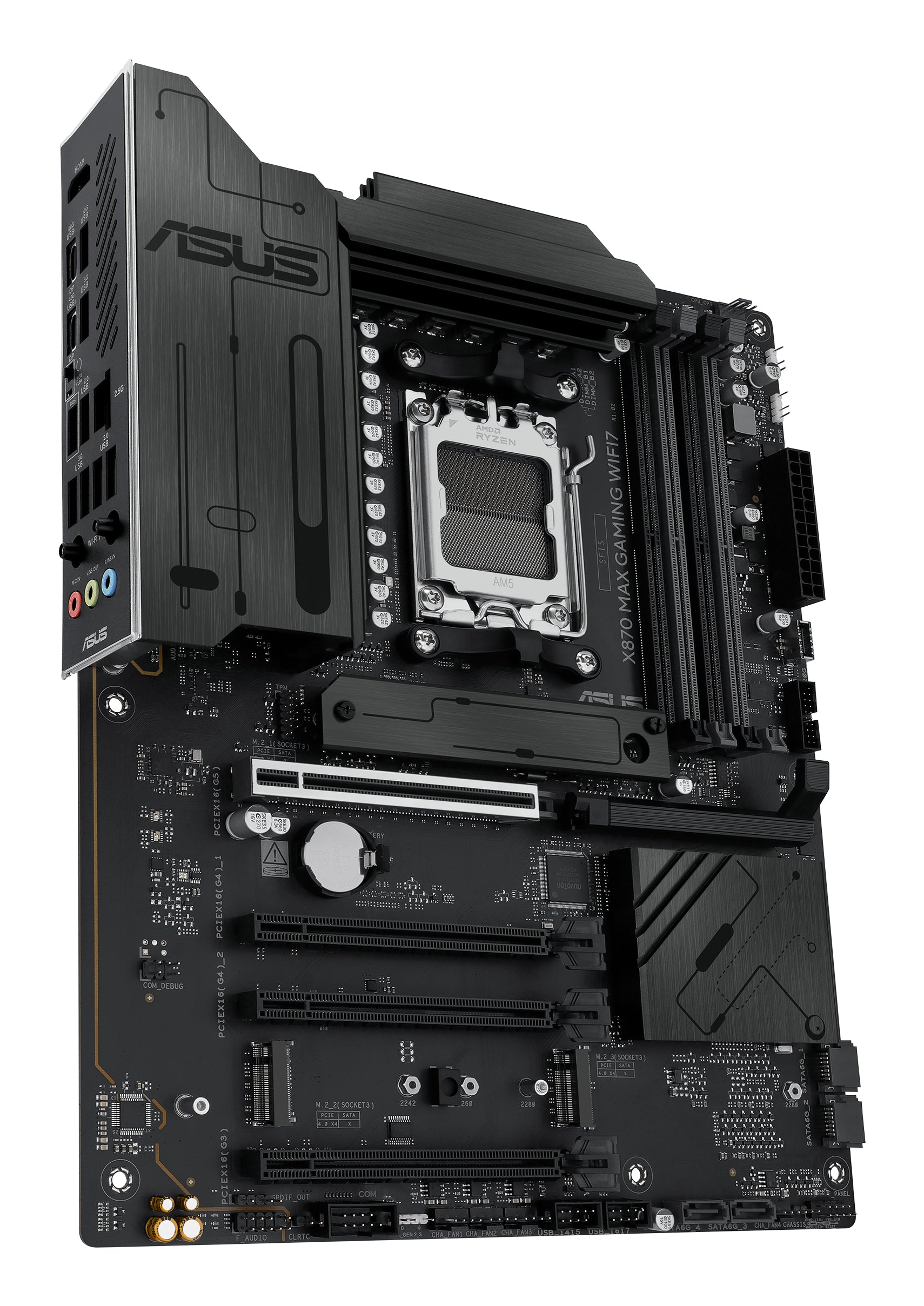

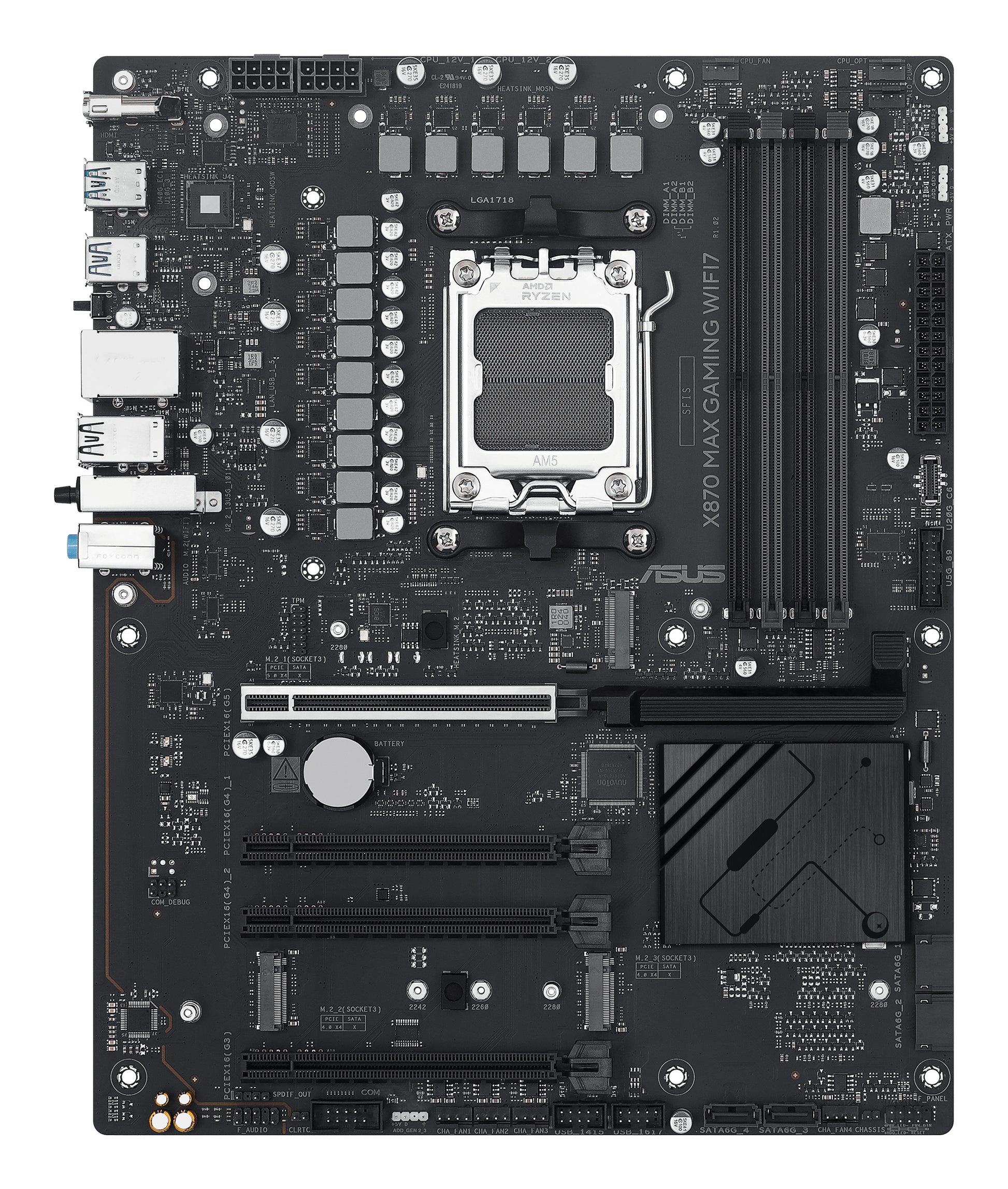

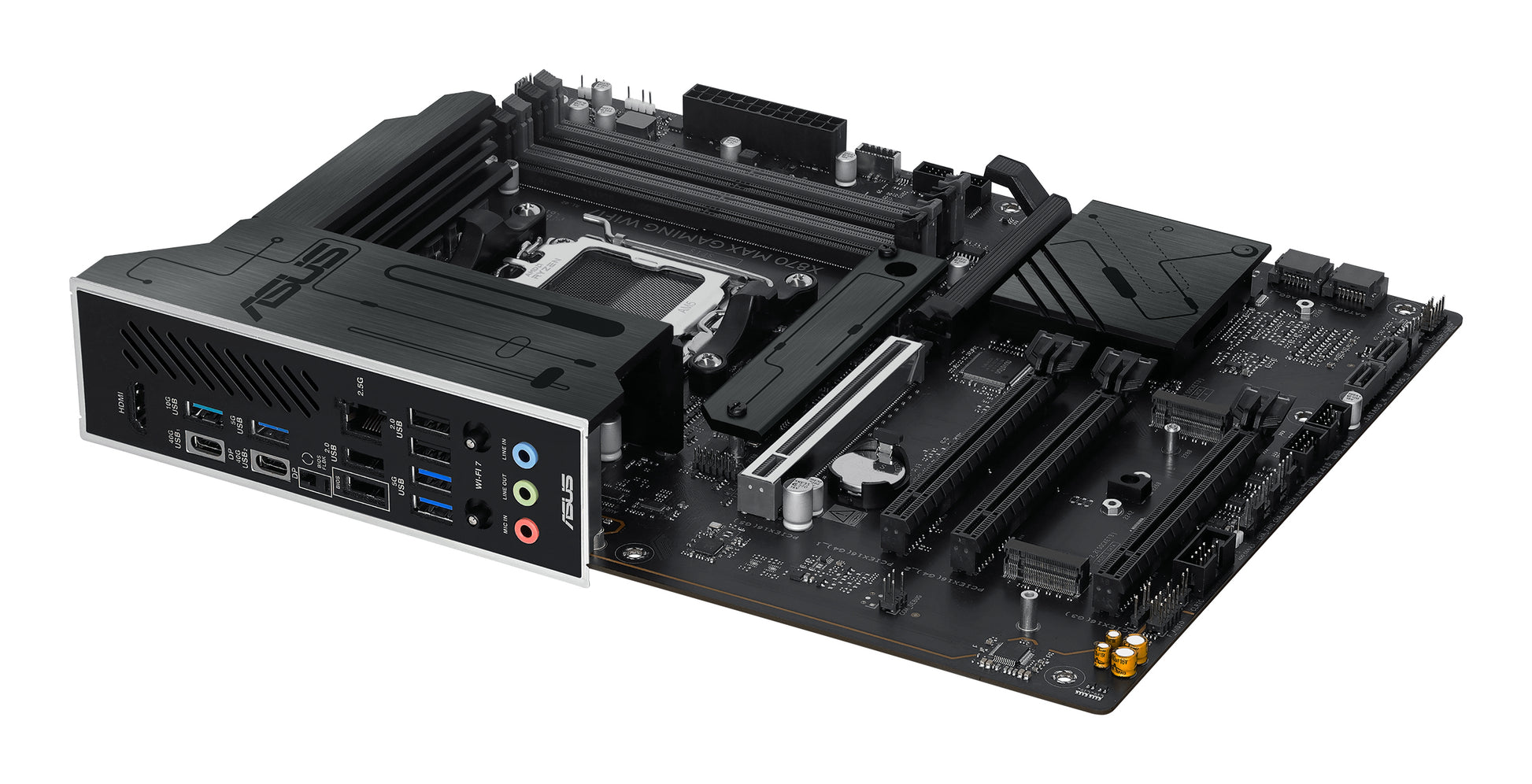

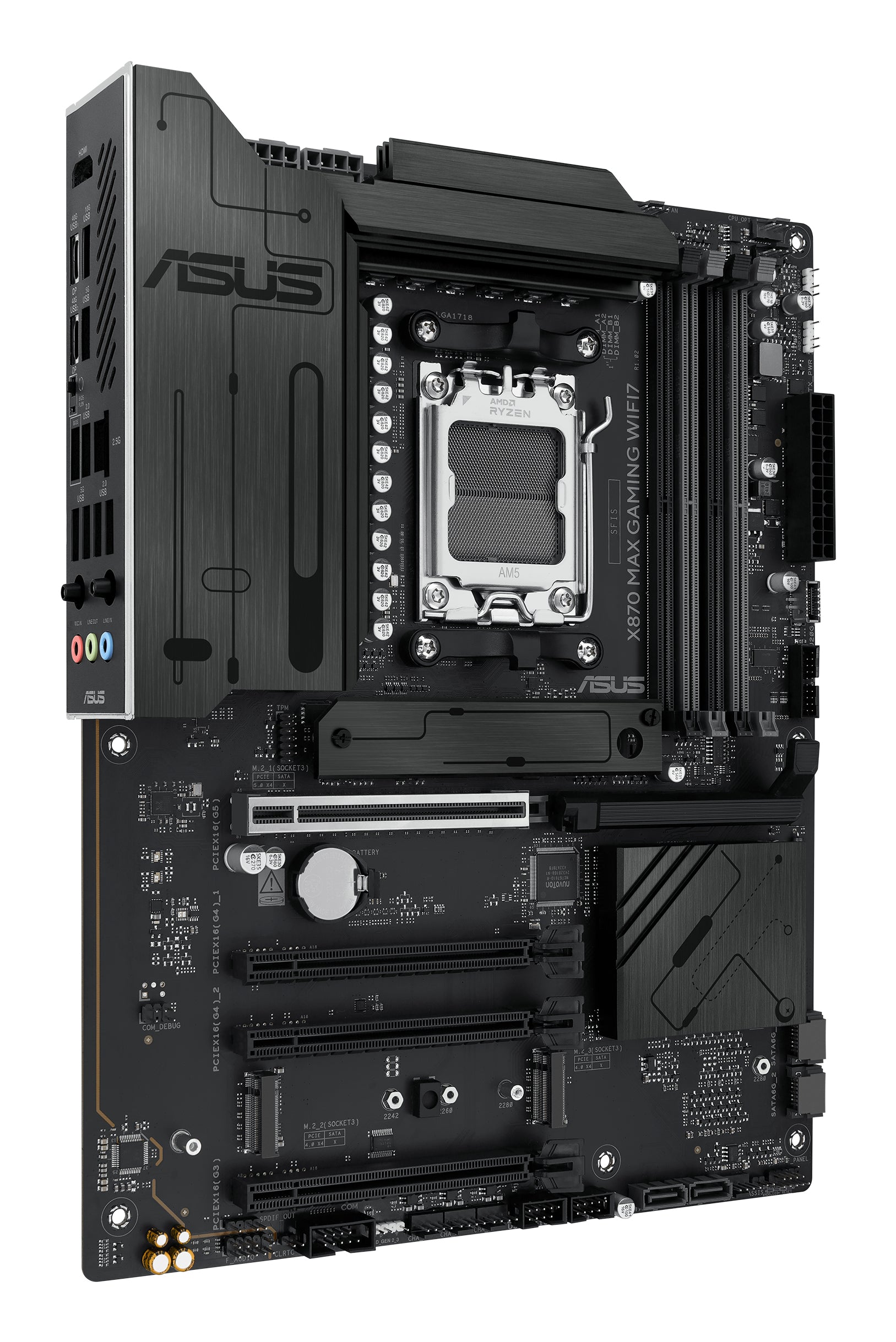

The ASUS X870 Max Gaming WiFi7 is a Extended ATX motherboard built around the AMD X870E chipset and AM5 processor socket. It is designed as a dependable foundation for a compatible AMD Ryzen gaming, home, creator or productivity PC.

With DDR5 memory support, High-end PCIe 5.0 and PCIe 4.0 NVMe storage support, Marvell 10Gb plus Realtek 5Gb Ethernet and modern PCI Express expansion, this board provides the core connectivity needed for a current custom system. Integrated Wi-Fi 7 and Bluetooth 5.4 provide convenient wireless networking.

Key Features

• AM5 processor socket with AMD X870E chipset
• 4 DDR5 memory slots with Up to DDR5-8200+ OC support
• Maximum supported memory capacity of 256GB
• 2 x PCIe 5.0 x16 and 2 x PCIe 4.0 x16
• High-end PCIe 5.0 and PCIe 4.0 NVMe storage support
• 4 x SATA 6Gb/s connections
• Marvell 10Gb plus Realtek 5Gb Ethernet
• Wi-Fi 7
• Bluetooth 5.4
• ROG SupremeFX ALC4082 7.1-channel audio
• Extended ATX form factor

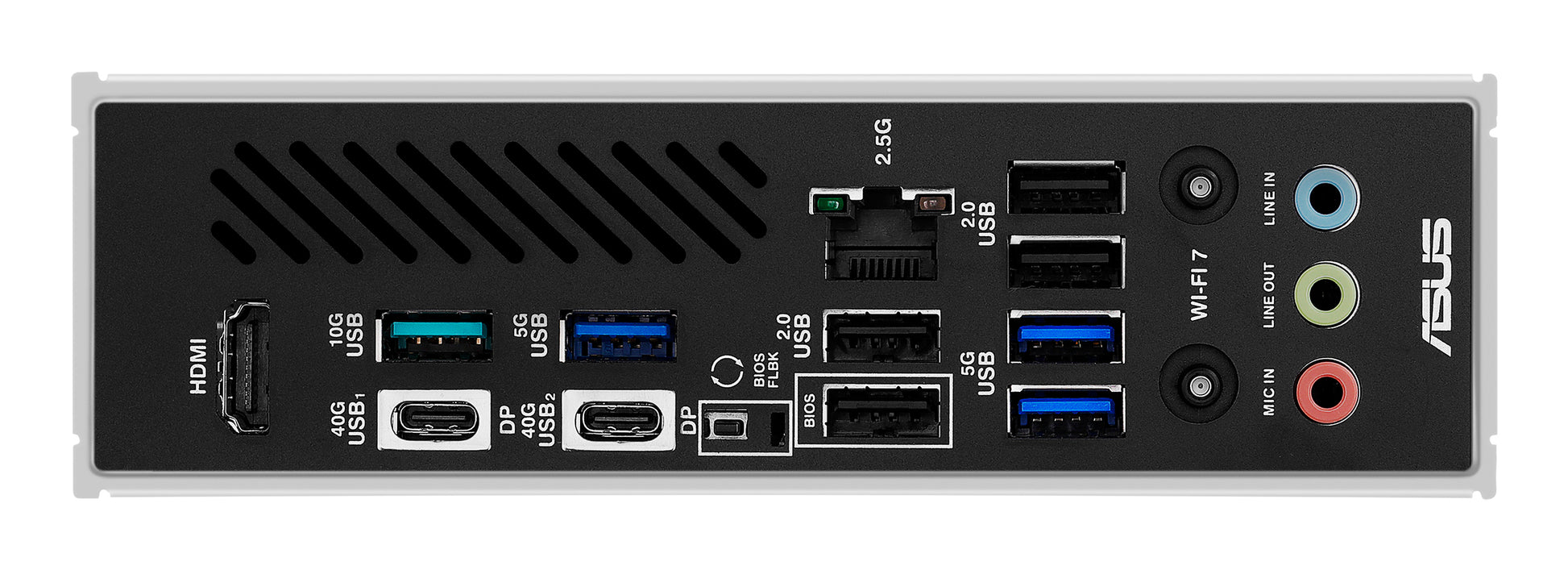

• Dual USB4 40Gbps Type-C, dual high-speed LAN, premium AM5 power delivery and extensive expansion

Processor and Chipset Platform

The AM5 socket and AMD X870E chipset support compatible AMD Ryzen processors. CPU compatibility can depend on the installed BIOS revision, so the processor support list should be checked when combining the board with a newly released CPU.

Memory Support

The board provides 4 DDR5 DIMM slots in a dual-channel configuration, supporting up to 256GB. Listed memory capability reaches Up to DDR5-8200+ OC. Actual available speeds depend on the installed processor, memory kit, BIOS and selected XMP or EXPO profile.

PCI Express Expansion

2 x PCIe 5.0 x16 and 2 x PCIe 4.0 x16. This provides a suitable connection for a compatible graphics card while additional slots can support expansion hardware such as capture, sound or networking cards where the board layout allows.

Fast M.2 and SATA Storage

High-end PCIe 5.0 and PCIe 4.0 NVMe storage support. The board also includes 4 SATA 6Gb/s ports for compatible 2.5 inch SSDs, hard drives and other SATA devices. RAID support for compatible SATA and NVMe storage

Networking and Wireless Connectivity

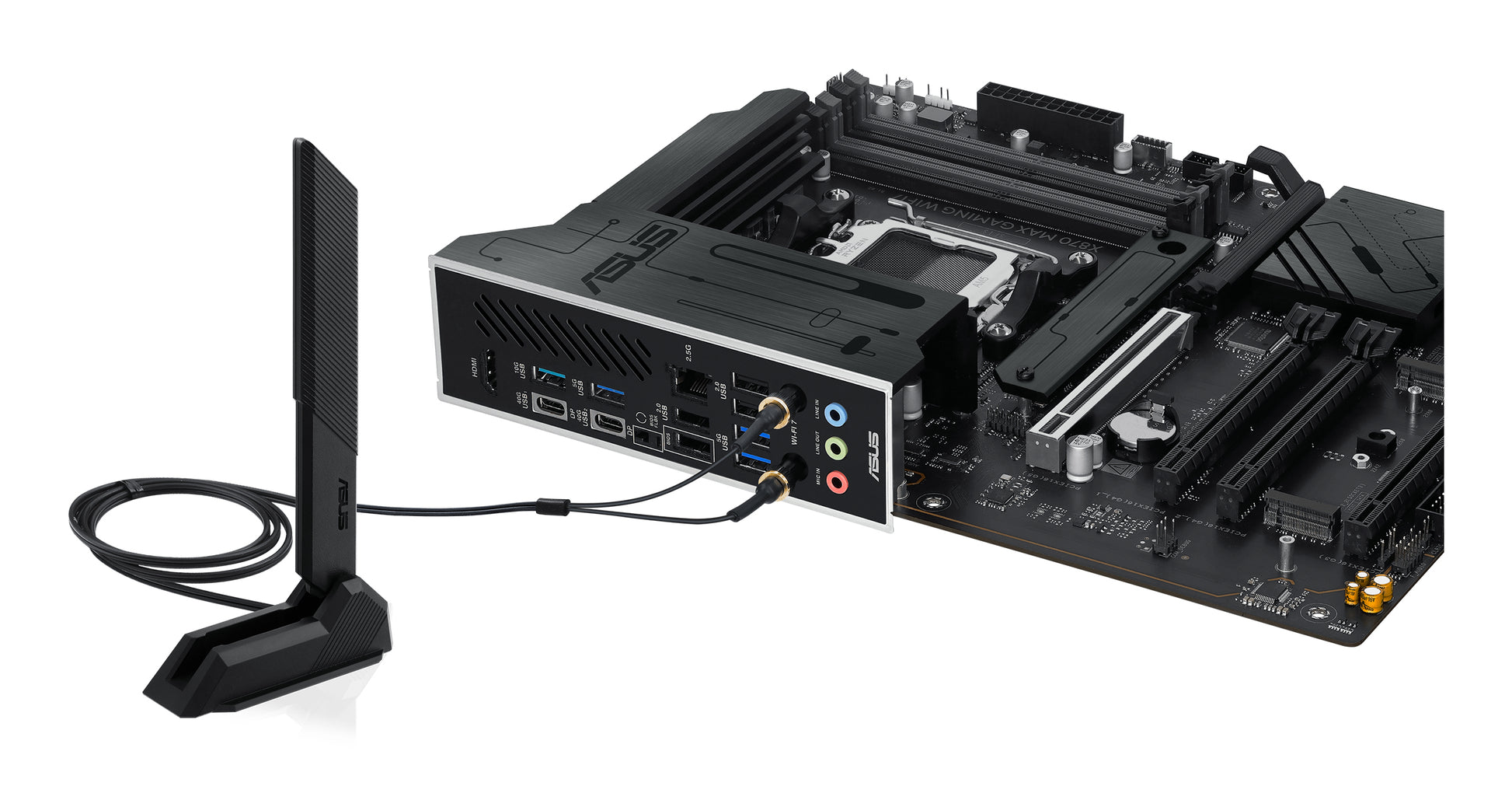

Wired networking is provided by Marvell 10Gb plus Realtek 5Gb Ethernet. The integrated Wi-Fi 7 and Bluetooth 5.4 connections support cable-free networking and compatible wireless peripherals.

Audio and Display Connectivity

ROG SupremeFX ALC4082 7.1-channel audio provides onboard sound for speakers, headsets and gaming audio. Any HDMI or DisplayPort connections on the motherboard require a processor with compatible integrated graphics and do not operate from a CPU that has no integrated display capability.

Cooling, RGB and PC Building Features

Dual USB4 40Gbps Type-C, dual high-speed LAN, premium AM5 power delivery and extensive expansion. Addressable RGB and Aura Sync support. Fan headers and UEFI control options allow compatible case fans and CPU cooling hardware to be configured for balanced temperatures and acoustics.

Core Specification

Networking and Connectivity

Physical and Product Information

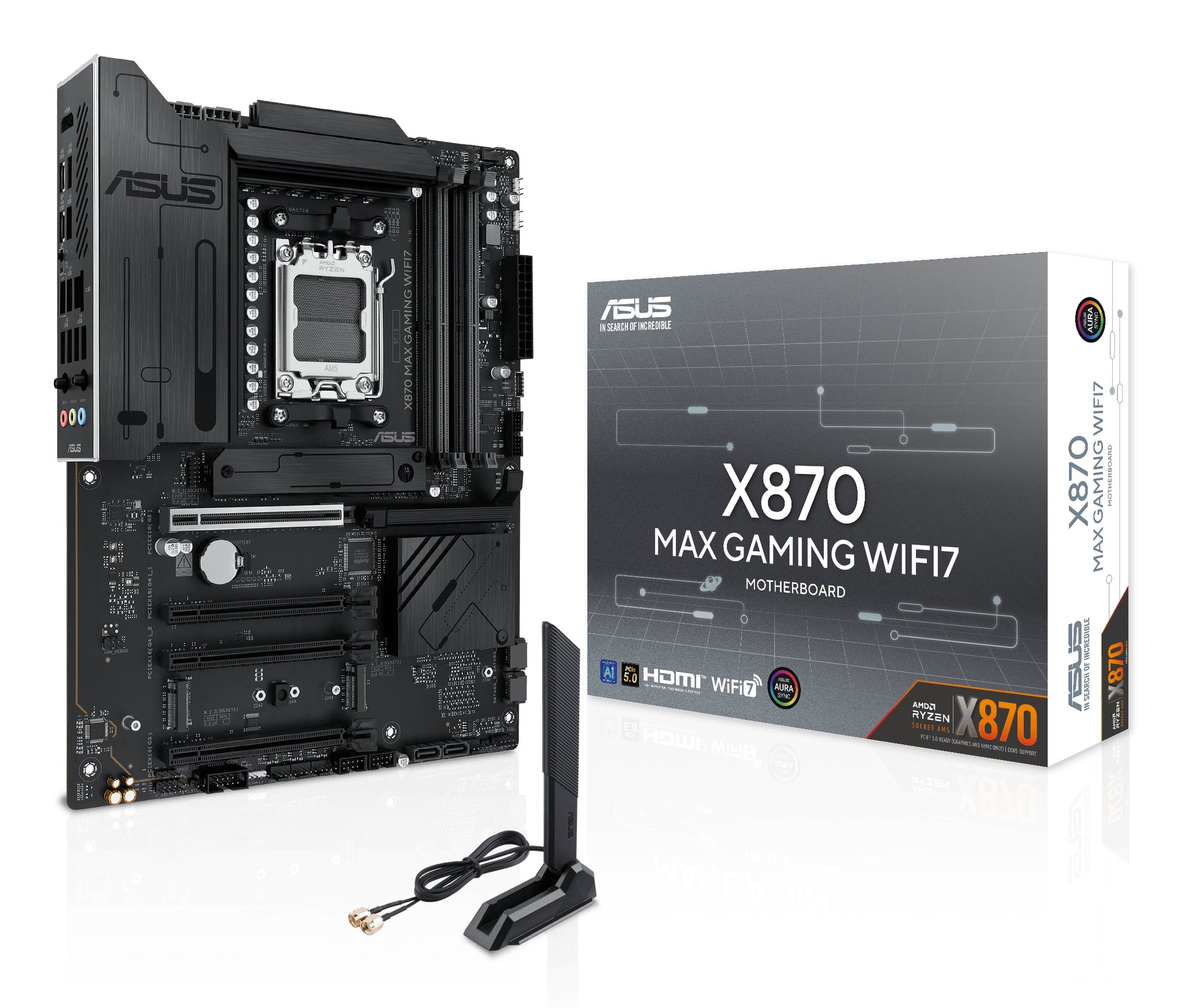

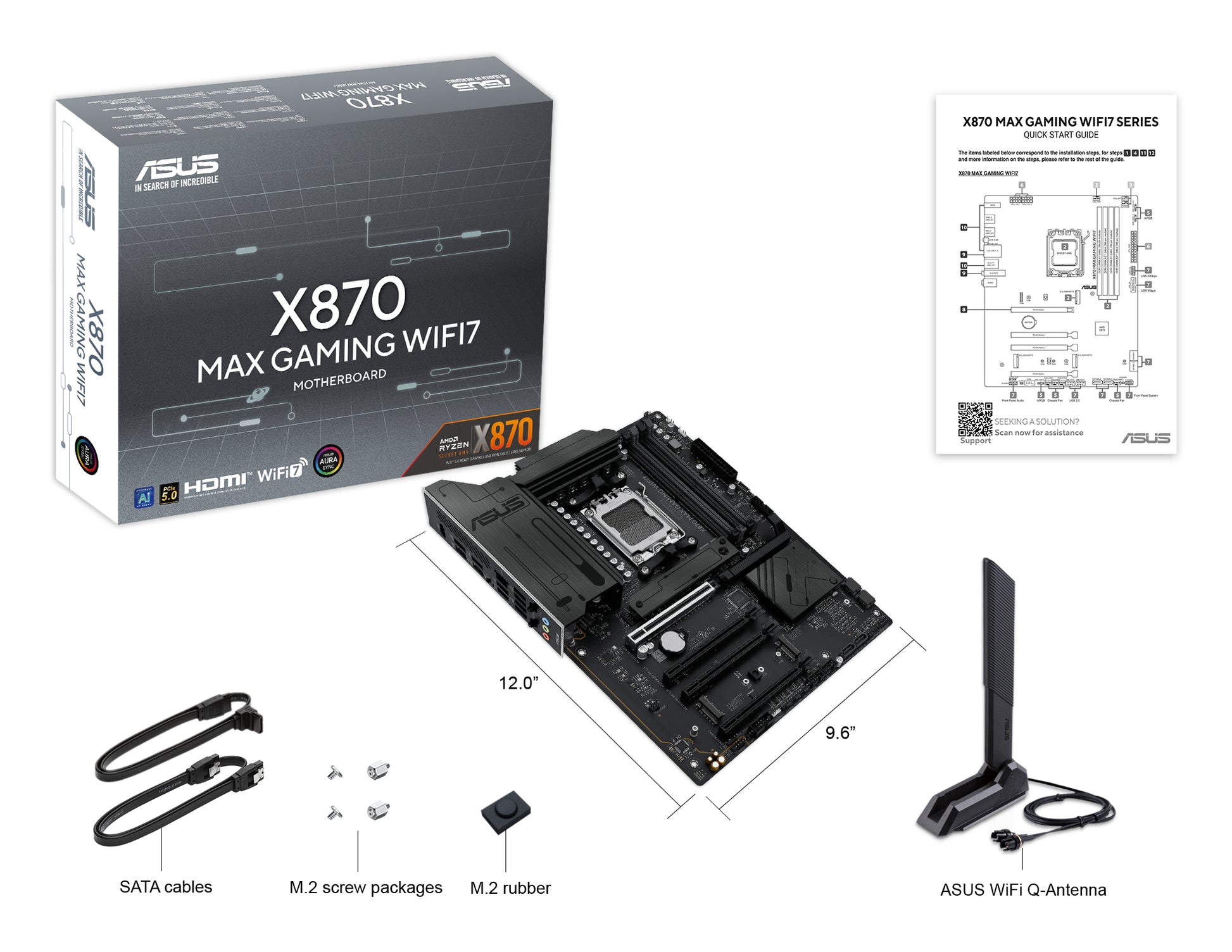

Typical Package Contents

• Motherboard
• Quick installation guide or user manual
• SATA data cable(s)
• M.2 mounting hardware
• Wi-Fi antenna

Please note: Processor support, memory speeds, PCI Express lane allocation and M.2 availability can vary according to the installed CPU and BIOS. Check case compatibility for the stated form factor and confirm that the power supply includes the required motherboard and CPU power connectors.
