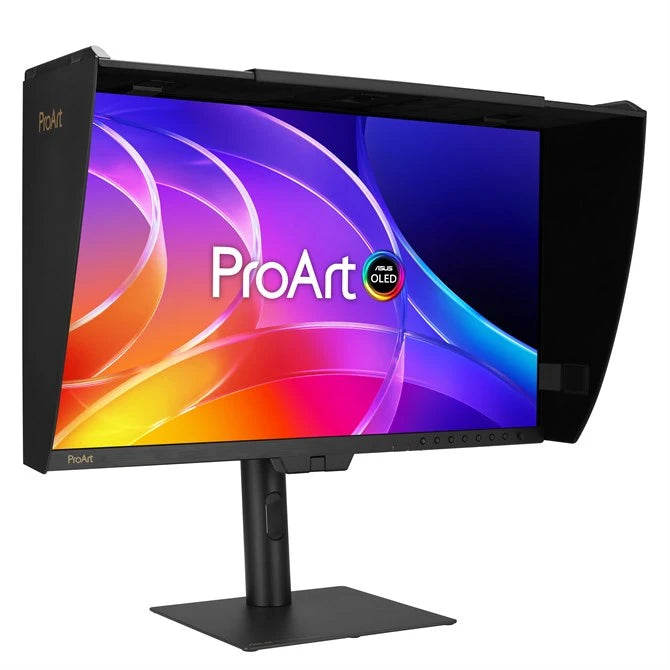

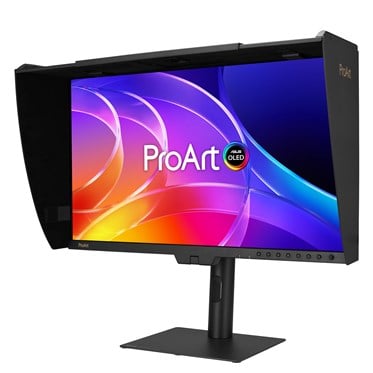

ASUS PROART DISPLAY OLED PA27USD PRO

ASUS ProArt Display OLED PA27USD 26.5 Inch 4K QD OLED Professional Monitor

The ASUS ProArt Display OLED PA27USD is a premium professional monitor created for video editors, colourists, photographers, designers and content creators who require exceptional colour accuracy and flexible production connectivity.

Its 26.5 inch 4K QD OLED panel combines a sharp 3840 x 2160 resolution with true 10 bit colour, a rapid 240Hz refresh rate and an exceptionally fast 0.1 ms response time. Support for Dolby Vision, HDR10 and HLG makes it suitable for professional SDR and HDR production workflows.

Outstanding 4K QD OLED Image Quality

The QD OLED panel delivers individually controlled pixels, producing deep blacks, bright highlights and an exceptional 1,500,000:1 contrast ratio.

The 4K Ultra HD resolution provides excellent image clarity and workspace detail, while the anti reflection screen surface helps reduce distracting reflections in professional studios, offices and editing environments.

Professional Colour Accuracy

The PA27USD offers true 10 bit colour depth and can display approximately 1.07 billion colours. It covers 99% of the DCI P3 colour space and 100% of sRGB, making it suitable for colour sensitive photography, video editing, animation and digital design.

Each monitor is factory calibrated to achieve a colour accuracy of Delta E less than 1 and includes an individual colour pre calibration report.

Integrated Hardware Calibration

An embedded motorised colourimeter allows the display to perform hardware level calibration without requiring a separate calibration device.

Self calibration can be scheduled to run automatically, helping maintain colour accuracy over time. The monitor is also Calman Ready and supports integration with professional colour management workflows.

Dolby Vision and Professional HDR Support

The ProArt PA27USD supports Dolby Vision, HDR10 and Hybrid Log Gamma formats, providing flexibility across professional broadcast, streaming and post production workflows.

Peak HDR brightness of up to 1,000 cd/m² and VESA DisplayHDR 400 True Black certification help deliver bright highlights, deep shadow detail and accurate HDR image reproduction.

240Hz Refresh Rate

A maximum refresh rate of 240Hz provides exceptionally smooth motion when previewing high frame rate footage, animation, games and fast moving visual content.

The 0.1 ms grey to grey response time helps keep motion clear and reduces visible ghosting during rapid scene changes.

Professional 12G SDI Connectivity

A dedicated 12G SDI input allows the monitor to connect directly to compatible professional cameras, production equipment and broadcast hardware.

This makes the PA27USD particularly suitable for on set monitoring, television production, professional video editing and colour grading environments.

Thunderbolt 4 with 96W Power Delivery

Two Thunderbolt 4 connections support compatible computers, high speed devices and daisy chained displays. Up to 96W of USB Power Delivery can charge a compatible laptop through the same cable used to transmit video and data.

Additional DisplayPort 2.1 and HDMI 2.1 connections provide broad compatibility with professional workstations, desktop computers, laptops, cameras and other video equipment.

Integrated USB Hub and KVM Switch

The built in USB hub includes USB Type A and USB Type C connections for compatible storage devices, keyboards, mice and creative peripherals.

An integrated KVM switch allows a single keyboard and mouse to control two connected computers, helping simplify multi system editing and production workspaces.

ProArt Preset and Palette Controls

ASUS ProArt Preset provides dedicated modes for a wide range of colour standards and workflows, including sRGB, Adobe RGB, DCI P3, Rec.709, BT.2020, DICOM, Dolby Vision and multiple HDR formats.

ProArt Palette allows detailed adjustment of colour temperature, RGB gain, RGB offset and gamma values directly through the monitor controls.

Ambient Light and Proximity Sensors

An integrated ambient light sensor helps adjust the display according to surrounding lighting conditions.

The proximity sensor can detect when the user moves away from the monitor, allowing supported screen protection functions to activate and helping reduce unnecessary OLED panel usage.

Flexible Desktop and On Set Positioning

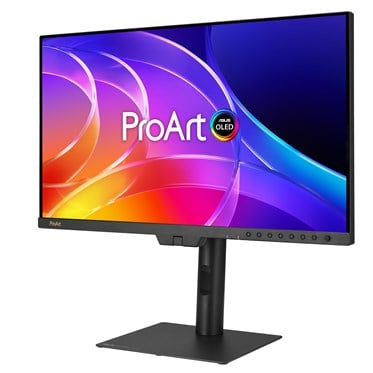

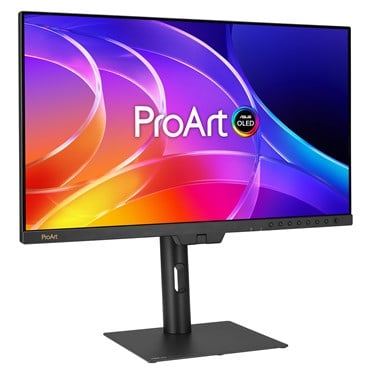

The full ergonomic stand provides height, tilt, swivel and pivot adjustment for comfortable desktop use.

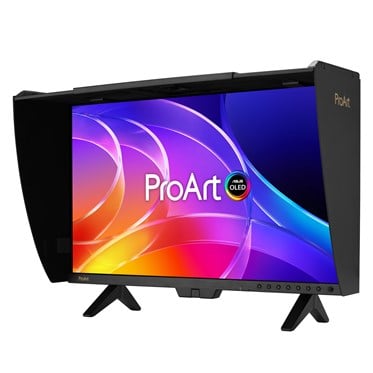

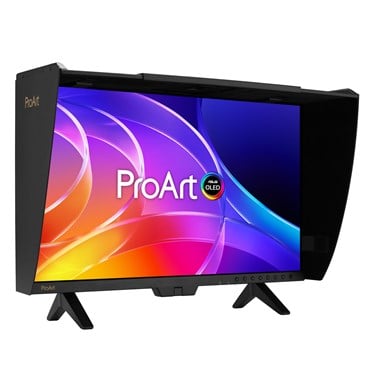

A compact mini stand is also included, providing a more portable configuration for on set production and environments where desk space is limited. The integrated handle helps make the display easier to reposition.

Key Features

• 26.5 inch professional QD OLED display
• 3840 x 2160 4K Ultra HD resolution
• Maximum 240Hz refresh rate
• 0.1 ms grey to grey response time
• True 10 bit colour depth
• Approximately 1.07 billion displayed colours
• 99% DCI P3 colour coverage
• 100% sRGB colour coverage
• Delta E less than 1 colour accuracy
• 1,500,000:1 contrast ratio
• Up to 1,000 cd/m² peak HDR brightness
• VESA DisplayHDR 400 True Black certified
• Dolby Vision support
• HDR10 and HLG support
• Integrated motorised colourimeter
• Hardware and automatic self calibration
• Calman Ready
• Professional 12G SDI input
• Two Thunderbolt 4 connections
• Thunderbolt daisy chain support
• USB Power Delivery up to 96W
• DisplayPort 2.1 connection
• Two HDMI 2.1 connections
• Integrated USB hub
• Integrated KVM switch
• Picture in Picture and Picture by Picture support
• Adaptive Sync support
• Integrated stereo speakers
• Ambient light and proximity sensors
• Ergonomic stand and compact mini stand included
• Three year warranty including panel burn in cover

Display Specifications

Brand	ASUS
Product Range	ProArt
Model	PA27USD
Product Type	Professional OLED monitor
Screen Size	26.5 inches
Panel Technology	QD OLED
Display Surface	Anti reflection
Resolution	3840 x 2160 4K Ultra HD
Aspect Ratio	16:9
Maximum Refresh Rate	240Hz
Response Time	0.1 ms GTG
Typical Brightness	250 cd/m²
Peak HDR Brightness	1,000 cd/m²
Contrast Ratio	1,500,000:1
Colour Depth	True 10 bit
Displayed Colours	Approximately 1.07 billion
Viewing Angles	178 degrees horizontal and vertical
Pixel Pitch	0.155 mm
Viewing Area	589.97 x 332.93 mm

Colour and HDR Specifications

sRGB Coverage	100%
DCI P3 Coverage	99%
Factory Colour Accuracy	Delta E less than 1
HDR Formats	Dolby Vision, HDR10 and HLG
HDR Certification	VESA DisplayHDR 400 True Black
Calibration	Embedded colourimeter with hardware and automatic self calibration
Professional Calibration Support	Calman Ready

ProArt Preset Modes

• Three calibration modes
• Dolby Vision
• HDR HLG P3
• HDR HLG BT.2020
• HDR PQ BT.2020
• HDR PQ P3
• Rec.709
• DICOM
• BT.2020
• DCI P3
• Adobe RGB
• sRGB
• Native mode

Connections

12G SDI	1
Thunderbolt 4	2 with daisy chain support
DisplayPort	1 x DisplayPort 2.1
HDMI	2 x HDMI 2.1 FRL
USB Type C	1 x USB 3.2 Gen 2
USB Type A	2 x USB 3.2 Gen 2
USB Power Delivery	Up to 96W
Audio Output	Headphone connection

Audio

Integrated Speakers

2 x 2W

Stand and Mounting

Height Adjustment	Up to 130 mm
Tilt Adjustment	Minus 5 to 23 degrees
Swivel Adjustment	Minus 30 to 30 degrees
Pivot Adjustment	Minus 90 to 90 degrees
VESA Mounting	100 x 100 mm
Security Slot	Kensington lock compatible

Dimensions and Weight

Dimensions With Ergonomic Stand	610.3 x 584.9 x 239.7 mm
Dimensions Without Stand	610.3 x 378.8 x 59.6 mm
Dimensions With Mini Stand	610.3 x 421.6 x 162.8 mm
Weight With Ergonomic Stand	7.50 kg
Weight Without Stand	4.96 kg
Weight With Mini Stand	5.36 kg
Packaged Weight	15.1 kg

Power Specifications

Typical Power Consumption	Less than 32W
Power Saving Mode	Less than 0.5W
Off Mode	0W using the hardware power switch
Input Voltage	100 to 240V AC, 50 or 60Hz

Package Contents

• ASUS ProArt Display OLED PA27USD
• Full ergonomic monitor stand
• Compact mini stand
• Monitor hood
• Thunderbolt 4 cable
• DisplayPort 2.1 DP80 cable
• Ultra High Speed HDMI cable
• USB Type C cable
• USB Type C to Type A cable
• Power cable
• Cable clip
• L shaped screwdriver
• Colour pre calibration report
• Quick start guide
• Warranty card

Certifications

• Calman Ready
• VESA DisplayHDR 400 True Black
• TÜV Low Blue Light certified
• TÜV Flicker Free certified
• EPEAT Silver
• ENERGY STAR certified
• Mac compatible

Performance note: Reaching the maximum 240Hz refresh rate requires a compatible graphics card, connection, cable and display configuration.

Power delivery note: Thunderbolt charging performance depends on the connected device and cable. The maximum supported USB Power Delivery output is 96W.

OLED care note: The monitor includes ASUS OLED Care and screen protection features designed to reduce the risk of image retention. These features should remain enabled and calibration or protection processes should be allowed to complete when prompted.

Warranty: Three years, including panel burn in cover.
