ASUS RX 9070 12GB PRIME GRE EVO OC

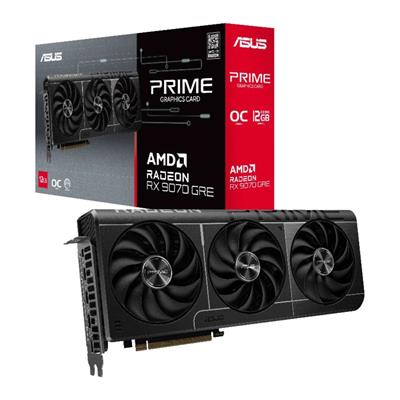

ASUS Prime Radeon RX 9070 GRE EVO OC Edition 12GB Graphics Card

The ASUS Prime Radeon RX 9070 GRE EVO OC Edition is a powerful AMD gaming graphics card designed for high quality 1440p gameplay, high refresh rate displays and modern gaming systems.

Powered by the AMD Radeon RX 9070 GRE graphics processor, it features 12GB of high speed GDDR6 memory, 3,072 stream processors and a factory overclocked boost speed of up to 2,880MHz when using ASUS GPU Tweak III.

Its compact 2.5 slot design, triple fan cooling system and SFF Ready compatibility make it suitable for a broad range of gaming cases without compromising cooling performance.

Powerful 1440p Gaming Performance

The Radeon RX 9070 GRE is designed to deliver strong performance at 2560 x 1440 resolution. Its 12GB of GDDR6 video memory provides capacity for detailed textures, modern games and demanding visual settings.

The card supports Microsoft DirectX 12 and AMD’s latest graphics technologies, providing compatibility with modern games, ray tracing effects and supported performance enhancing features.

Factory Overclocked Performance

The ASUS Prime RX 9070 GRE EVO OC operates at a boost clock of up to 2,860MHz in its default configuration, with a typical game clock of up to 2,280MHz.

When OC Mode is enabled through ASUS GPU Tweak III, the card can reach a boost clock of up to 2,880MHz and a game clock of up to 2,300MHz.

12GB GDDR6 Video Memory

The graphics card includes 12GB of GDDR6 memory running at an effective speed of 18Gbps across a 192 bit memory interface.

This provides the memory capacity and bandwidth required for high resolution textures, detailed game environments, content creation and accelerated graphics workloads.

Compact 2.5 Slot Design

The Prime Radeon RX 9070 GRE EVO uses a carefully arranged 2.5 slot cooling design measuring 304mm long. This provides broad compatibility with standard gaming cases and qualifying small form factor systems.

The card is officially listed as SFF Ready, helping builders identify compact cases that can accommodate its physical dimensions.

Triple Axial Tech Fan Cooling

Three ASUS Axial Tech fans use smaller central hubs and longer fan blades to increase downward air pressure through the heatsink.

The fans work alongside the heatsink and heat pipe assembly to maintain stable operating temperatures during demanding games and graphics workloads.

Quiet 0dB Operation

ASUS 0dB technology allows all three cooling fans to stop when the GPU temperature falls below approximately 55 degrees Celsius.

The fans restart when temperatures rise above approximately 60 degrees Celsius, providing quiet operation during light workloads while retaining active cooling when required.

Phase Change GPU Thermal Pad

A phase change thermal pad helps improve heat transfer between the graphics processor and the heatsink.

The material becomes more effective as it warms, helping fill microscopic gaps between surfaces and supporting consistent cooling performance over time.

Durable Dual Ball Fan Bearings

The Axial Tech fans use dual ball bearings designed to provide increased durability. ASUS states that dual ball bearing designs can offer up to twice the lifespan of traditional sleeve bearing fans.

Vented Protective Backplate

A protective backplate helps reinforce the graphics card while large ventilation openings allow heated air to pass through the heatsink more efficiently.

This improves airflow around the card and helps reduce the risk of heat becoming trapped during extended gaming sessions.

Flexible Display Connectivity

The graphics card provides three DisplayPort 2.1a connections and one HDMI 2.1b connection. Up to four displays can be connected simultaneously.

Support for a maximum digital resolution of 7680 x 4320 makes the card compatible with supported 8K displays, high refresh rate gaming monitors and multi monitor desktop configurations.

Key Features

• AMD Radeon RX 9070 GRE graphics processor
• ASUS factory overclocked OC Edition
• 12GB GDDR6 video memory
• 3,072 stream processors
• Up to 2,880MHz boost clock in OC Mode
• Up to 2,300MHz game clock in OC Mode
• 18Gbps effective memory speed
• 192 bit memory interface
• PCI Express 5.0 interface
• Triple Axial Tech cooling fans
• Quiet 0dB fan technology
• Durable dual ball fan bearings
• Phase change GPU thermal pad
• Vented protective backplate
• Compact 2.5 slot design
• SFF Ready compatibility
• Three DisplayPort 2.1a connections
• One HDMI 2.1b connection
• Supports up to four displays
• Maximum digital resolution of 7680 x 4320
• ASUS GPU Tweak III support
• Three year warranty

Graphics Specifications

Clock Speeds

Memory Specifications

Display Connections

Power Requirements

Physical Specifications

Package Contents

• ASUS Prime Radeon RX 9070 GRE EVO OC Edition graphics card
• Speed setup guide
• Thank you card

Compatibility note: Check that the computer case has at least 304mm of graphics card clearance, sufficient space for a 2.5 slot card and two available 8 pin PCI Express power connections.

Power supply note: ASUS recommends a 650W power supply based on a fully overclocked processor and graphics card configuration. Actual requirements depend on the remaining system components.

Performance note: Maximum boost speeds vary according to temperature, cooling, power availability, workload and individual graphics card characteristics.

Warranty: Three years.
