CORSAIR 650W GOLD FULLY MODULAR RM650E

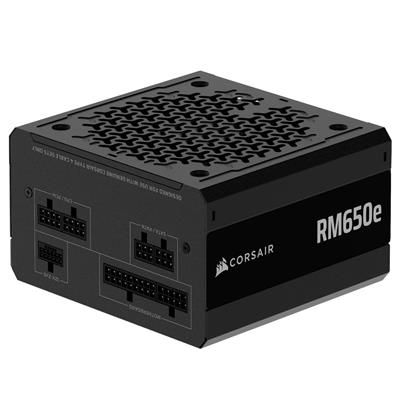

Corsair RM650e 650W 80 PLUS Gold Fully Modular ATX 3.1 Power Supply

The Corsair RM650e is a 650W power supply designed to deliver stable, efficient power for gaming PCs, creator systems and compatible workstations. Its 80 PLUS Gold rating helps reduce wasted energy and heat, while the fully modular cable system is designed around the needs of the listed model.

ATX 3.1 and PCIe 5.1 certified support makes the unit suitable for compatible current-generation hardware. Native 12V-2x6 support for compatible modern graphics cards provides graphics-card power for supported configurations, subject to the system's complete power requirement.

Key Features

• 650W continuous power output
• 80 PLUS Gold
• Fully modular
• ATX 3.1 and PCIe 5.1 certified
• Native 12V-2x6 support for compatible modern graphics cards
• 120mm low-noise fan with Zero RPM mode
• 105°C-rated industrial-grade capacitors
• LLC resonant topology with DC-to-DC conversion
• ATX 3.1 platform supports modern transient power requirements
• Over-voltage, under-voltage, over-current, over-power, over-temperature and short-circuit protection
• 7 years manufacturer warranty
• Compact fully modular design for efficient mainstream gaming systems

Stable Continuous Power

The unit provides up to 650W of continuous output. A power supply should be selected according to the complete system specification, including the processor, graphics card, storage devices, cooling hardware and expected upgrade path.

Efficiency and Reduced Heat

The 80 PLUS Gold certification describes the PSU's energy-conversion efficiency under defined test conditions. Higher efficiency can reduce the amount of electrical energy lost as heat, helping the cooling system operate more effectively.

Modern Graphics-Card Power

Native 12V-2x6 support for compatible modern graphics cards. Where a native 12V-2x6 or 16-pin cable is supplied, it should be inserted fully at both ends and routed without a tight bend immediately beside the connector.

Cable Management

The Fully modular design determines how the cables are connected. Only the required modular cables need to be installed, helping reduce unused cable clutter and improving access within the case.

Cooling and Noise

Cooling is provided by a 120mm low-noise fan with Zero RPM mode. Fan speed and acoustic output vary with temperature, input voltage and power load. Adequate ventilation around the PSU intake and exhaust remains important.

Electrical Design and Reliability

LLC resonant topology with DC-to-DC conversion. 105°C-rated industrial-grade capacitors. Over-voltage, under-voltage, over-current, over-power, over-temperature and short-circuit protection help protect the PSU and connected components from abnormal electrical conditions.

System Compatibility

The PSU uses the ATX format and measures 140 x 150 x 86mm. Before ordering, confirm the PC case supports the unit's length and cable-exit position. The motherboard, CPU and graphics-card connector requirements should also be checked against the supplied cable set.

Power and Physical Specification

Power Connections

Protection Features

Over-voltage, under-voltage, over-current, over-power, over-temperature and short-circuit protection. Protection circuits respond to abnormal conditions but do not replace correct installation, suitable mains protection or an appropriately sized PSU.

Ideal For

• Custom gaming PCs
• Creator and streaming systems
• Performance desktop workstations
• PC upgrades requiring dependable power
• Systems using compatible modern graphics cards

Package Contents

• Power supply unit
• UK AC power cable
• Mounting screws
• Product documentation

Please note: PSU cables are not universally interchangeable between different brands or product families. Use only the cables supplied with this exact power-supply model or replacement cables explicitly approved by the manufacturer. Available power on regional mains input can vary on exceptionally high-wattage units.
