FSP 2000W GOLD F/M CANNON PRO

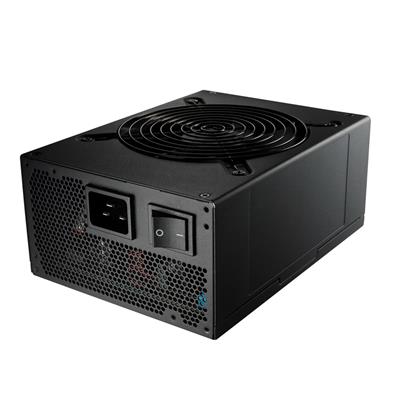

FSP Cannon Pro 2000W 80 PLUS Gold Fully Modular PCIe 5 Power Supply

The FSP Cannon Pro 2000W is a 2000W at 200 to 240V input power supply designed to deliver stable, efficient power for gaming PCs, creator systems and compatible workstations. Its 80 PLUS 230V EU Gold rating helps reduce wasted energy and heat, while the fully modular cable system is designed around the needs of the listed model.

ATX/EPS with PCIe 5 12V-2x6 support support makes the unit suitable for compatible current-generation hardware. 2 x native 12V-2x6 connectors plus 12 x 6+2-pin PCIe connectors provides graphics-card power for supported configurations, subject to the system's complete power requirement.

Key Features

• 2000W at 200 to 240V input continuous power output
• 80 PLUS 230V EU Gold
• Fully modular
• ATX/EPS with PCIe 5 12V-2x6 support
• 2 x native 12V-2x6 connectors plus 12 x 6+2-pin PCIe connectors
• 135mm double ball bearing fan
• Japanese electrolytic capacitors
• Single +12V rail with DC-to-DC conversion and MIA control chipset
• Over-voltage, under-voltage, over-current, over-power, over-temperature and short-circuit protection
• 5 years manufacturer warranty
• Industrial high-output design for continuous workstation, rendering and compute workloads

Stable Continuous Power

The unit provides up to 2000W at 200 to 240V input of continuous output. A power supply should be selected according to the complete system specification, including the processor, graphics card, storage devices, cooling hardware and expected upgrade path.

Efficiency and Reduced Heat

The 80 PLUS 230V EU Gold certification describes the PSU's energy-conversion efficiency under defined test conditions. Higher efficiency can reduce the amount of electrical energy lost as heat, helping the cooling system operate more effectively.

Modern Graphics-Card Power

2 x native 12V-2x6 connectors plus 12 x 6+2-pin PCIe connectors. Where a native 12V-2x6 or 16-pin cable is supplied, it should be inserted fully at both ends and routed without a tight bend immediately beside the connector.

Cable Management

The Fully modular design determines how the cables are connected. Only the required modular cables need to be installed, helping reduce unused cable clutter and improving access within the case.

Cooling and Noise

Cooling is provided by a 135mm double ball bearing fan. Fan speed and acoustic output vary with temperature, input voltage and power load. Adequate ventilation around the PSU intake and exhaust remains important.

Electrical Design and Reliability

Single +12V rail with DC-to-DC conversion and MIA control chipset. Japanese electrolytic capacitors. Over-voltage, under-voltage, over-current, over-power, over-temperature and short-circuit protection help protect the PSU and connected components from abnormal electrical conditions.

System Compatibility

The PSU uses the ATX format and measures 200 x 150 x 86mm. Before ordering, confirm the PC case supports the unit's length and cable-exit position. The motherboard, CPU and graphics-card connector requirements should also be checked against the supplied cable set.

Power and Physical Specification

Power Connections

Protection Features

Over-voltage, under-voltage, over-current, over-power, over-temperature and short-circuit protection. Protection circuits respond to abnormal conditions but do not replace correct installation, suitable mains protection or an appropriately sized PSU.

Ideal For

• Custom gaming PCs
• Creator and streaming systems
• Performance desktop workstations
• PC upgrades requiring dependable power
• Systems using compatible modern graphics cards

Package Contents

• Power supply unit
• UK AC power cable
• Mounting screws
• Product documentation

Please note: PSU cables are not universally interchangeable between different brands or product families. Use only the cables supplied with this exact power-supply model or replacement cables explicitly approved by the manufacturer. Available power on regional mains input can vary on exceptionally high-wattage units.
