GIGABYTE 1700 B760 GAMING X GEN5

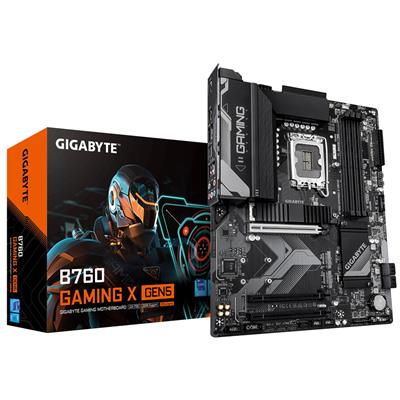

Gigabyte B760 Gaming X Gen5 ATX Motherboard

The Gigabyte B760 Gaming X Gen5 ATX Motherboard is an ATX motherboard based on the Intel B760 chipset and Intel LGA 1700 processor socket. It provides a foundation for Intel 12th, 13th and 14th Generation Core processors, with memory, storage, expansion, networking and rear I/O options for a compatible custom PC.

Key Features

• Intel LGA 1700
• Intel B760
• ATX
• Intel 12th, 13th and 14th Generation Core processors
• 4 x DDR5 DIMM slots, up to 256GB, with overclocking support
• 8+1+1 phase digital VRM
• 2.5Gb Ethernet
• High definition audio
• 1 x PCIe 5.0 x16 graphics slot
• Additional PCIe expansion slots
• Multiple PCIe 4.0 M.2 slots
• 4 x SATA 6Gb/s ports
• HDMI
• DisplayPort
• M.2 Thermal Guard
• EZ-Latch
• Smart Fan 6
• Q-Flash Plus
• RGB Fusion

Processor and Memory Platform

The Intel LGA 1700 socket and Intel B760 platform support Intel 12th, 13th and 14th Generation Core processors.

Memory support is specified as 4 x DDR5 DIMM slots, up to 256GB, with overclocking support. The final supported speed and capacity depend on the processor, memory kit and BIOS configuration.

Power Delivery and Cooling

The board uses 8+1+1 phase digital VRM to supply the processor and platform components. Heatsinks and fan controls support cooling across a suitable completed build.

Expansion Support

The motherboard provides the following expansion connections for compatible graphics cards and add-in devices:

• 1 x PCIe 5.0 x16 graphics slot
• Additional PCIe expansion slots

Storage Connectivity

M.2 and SATA connections provide options for fast solid-state storage and additional compatible drives.

• Multiple PCIe 4.0 M.2 slots
• 4 x SATA 6Gb/s ports

Networking

2.5Gb Ethernet provides wired and, where specified, wireless network connectivity for the completed PC.

Integrated Audio

High definition audio provides onboard sound for compatible speakers, headsets and audio equipment.

Rear I/O and Display Connections

Rear USB connectivity includes USB Type-C and additional high-speed USB ports.

Available motherboard display outputs include HDMI, DisplayPort and require a processor with compatible integrated graphics.

Additional Motherboard Features

• M.2 Thermal Guard
• EZ-Latch
• Smart Fan 6
• Q-Flash Plus
• RGB Fusion

Platform Specification

Expansion Slots

Storage Connections

Display Outputs

Warranty and Product Information

Please note: Processor, memory, storage and expansion compatibility depend on the exact component model and motherboard BIOS version. Motherboard display outputs require a processor with supported integrated graphics.
