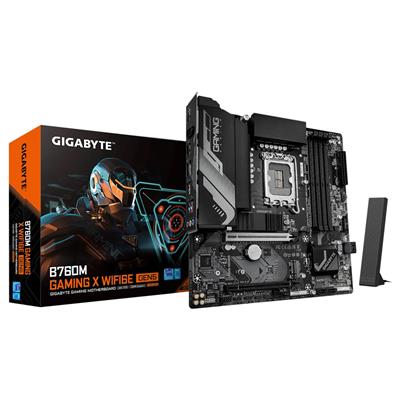

GIGABYTE 1700 B760M GAMING X WIFI6E GEN5

Gigabyte B760M Gaming X WiFi6E Gen5 Micro ATX Motherboard

The Gigabyte B760M Gaming X WiFi6E Gen5 Micro ATX Motherboard is a Micro ATX motherboard based on the Intel B760 chipset and Intel LGA 1700 processor socket. It provides a foundation for Intel 12th, 13th and 14th Generation Core processors, with memory, storage, expansion, networking and rear I/O options for a compatible custom PC.

Key Features

• Intel LGA 1700
• Intel B760
• Micro ATX
• Intel 12th, 13th and 14th Generation Core processors
• 4 x DDR5 DIMM slots, dual channel
• 8+1+1 phase digital VRM with 60A power stages
• 2.5Gb Ethernet, Wi-Fi 6E and Bluetooth
• High definition audio
• 1 x PCIe 5.0 x16 graphics slot
• Additional PCIe expansion slots
• 2 x PCIe 4.0 M.2 slots
• 4 x SATA 6Gb/s ports
• HDMI
• DisplayPort
• M.2 Thermal Guard
• Smart Fan 6
• Q-Flash Plus
• EZ-Latch
• RGB Fusion

Processor and Memory Platform

The Intel LGA 1700 socket and Intel B760 platform support Intel 12th, 13th and 14th Generation Core processors.

Memory support is specified as 4 x DDR5 DIMM slots, dual channel. The final supported speed and capacity depend on the processor, memory kit and BIOS configuration.

Power Delivery and Cooling

The board uses 8+1+1 phase digital VRM with 60A power stages to supply the processor and platform components. Heatsinks and fan controls support cooling across a suitable completed build.

Expansion Support

The motherboard provides the following expansion connections for compatible graphics cards and add-in devices:

• 1 x PCIe 5.0 x16 graphics slot
• Additional PCIe expansion slots

Storage Connectivity

M.2 and SATA connections provide options for fast solid-state storage and additional compatible drives.

• 2 x PCIe 4.0 M.2 slots
• 4 x SATA 6Gb/s ports

Networking

2.5Gb Ethernet, Wi-Fi 6E and Bluetooth provides wired and, where specified, wireless network connectivity for the completed PC.

Integrated Audio

High definition audio provides onboard sound for compatible speakers, headsets and audio equipment.

Rear I/O and Display Connections

Rear USB connectivity includes USB Type-C and additional high-speed USB ports.

Available motherboard display outputs include HDMI, DisplayPort and require a processor with compatible integrated graphics.

Additional Motherboard Features

• M.2 Thermal Guard
• Smart Fan 6
• Q-Flash Plus
• EZ-Latch
• RGB Fusion

Platform Specification

Expansion Slots

Storage Connections

Display Outputs

Warranty and Product Information

Please note: Processor, memory, storage and expansion compatibility depend on the exact component model and motherboard BIOS version. Motherboard display outputs require a processor with supported integrated graphics.
