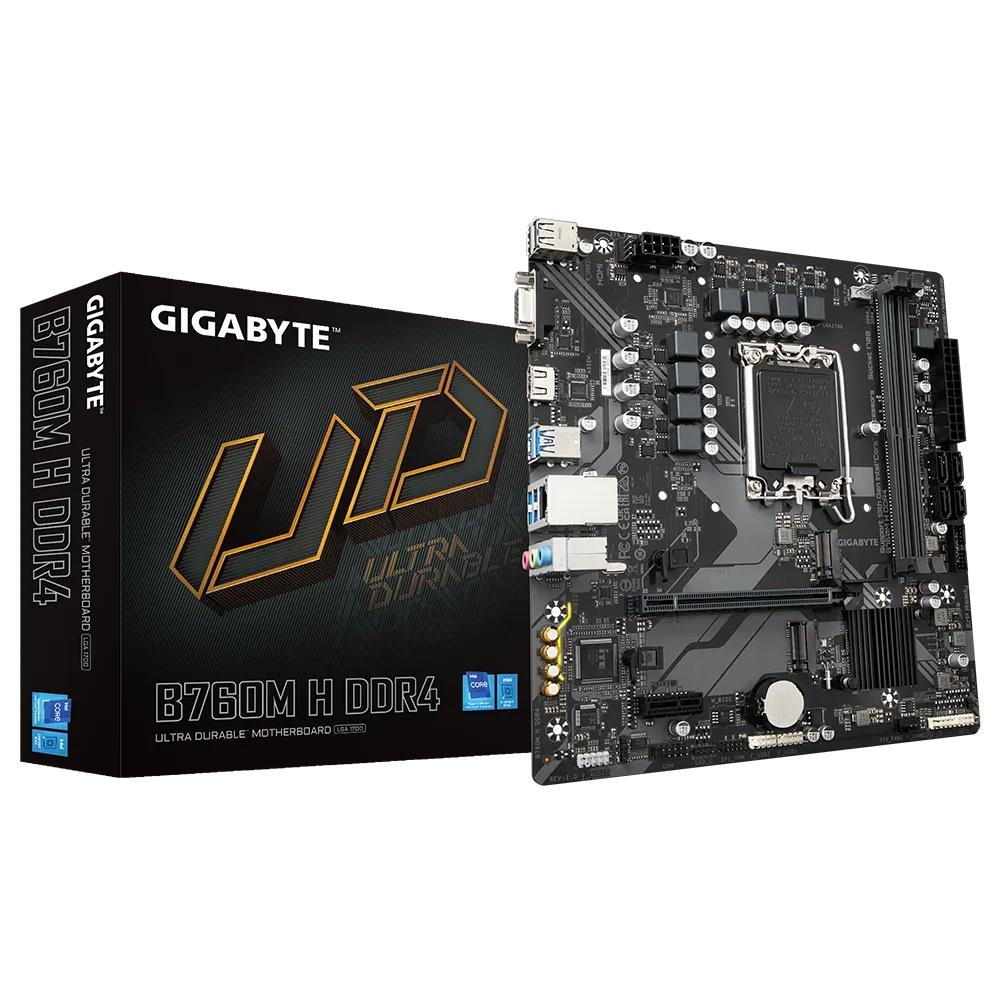

GIGABYTE B760M H DDR4 Intel B760 LGA1700 DDR4 Micro ATX Motherboard

The GIGABYTE B760M H DDR4 is a Micro ATX motherboard built around the Intel B760 chipset and LGA1700 processor socket. It is designed as a dependable foundation for a compatible Intel Core 12th, 13th and 14th Generation gaming, home, creator or productivity PC.

With DDR4 memory support, 2 x PCIe 4.0 M.2, Gigabit Ethernet and modern PCI Express expansion, this board provides the core connectivity needed for a current custom system.

Key Features

• LGA1700 processor socket with Intel B760 chipset
• 2 DDR4 memory slots with DDR4-3200 support
• Maximum supported memory capacity of 64GB
• 1 x PCIe 4.0 x16 and 1 x PCIe 3.0 x1
• 2 x PCIe 4.0 M.2
• 4 x SATA 6Gb/s connections
• Gigabit Ethernet
• Realtek 7.1-channel high-definition audio
• Micro ATX form factor
• EZ-Latch graphics slot, Smart Fan 6 and dual PCIe 4.0 M.2

Processor and Chipset Platform

The LGA1700 socket and Intel B760 chipset support compatible Intel Core 12th, 13th and 14th Generation processors. CPU compatibility can depend on the installed BIOS revision, so the processor support list should be checked when combining the board with a newly released CPU.

Memory Support

The board provides 2 DDR4 DIMM slots in a dual-channel configuration, supporting up to 64GB. Listed memory capability reaches DDR4-3200. Actual available speeds depend on the installed processor, memory kit, BIOS and selected XMP or EXPO profile.

PCI Express Expansion

1 x PCIe 4.0 x16 and 1 x PCIe 3.0 x1. This provides a suitable connection for a compatible graphics card while additional slots can support expansion hardware such as capture, sound or networking cards where the board layout allows.

Fast M.2 and SATA Storage

2 x PCIe 4.0 M.2. The board also includes 4 SATA 6Gb/s ports for compatible 2.5 inch SSDs, hard drives and other SATA devices. RAID 0, 1, 5 and 10

Networking and Wireless Connectivity

Wired networking is provided by Gigabit Ethernet. This model is intended for a wired network connection unless a separate wireless adapter is fitted.

Audio and Display Connectivity

Realtek 7.1-channel high-definition audio provides onboard sound for speakers, headsets and gaming audio. Any HDMI or DisplayPort connections on the motherboard require a processor with compatible integrated graphics and do not operate from a CPU that has no integrated display capability.

Cooling, RGB and PC Building Features

EZ-Latch graphics slot, Smart Fan 6 and dual PCIe 4.0 M.2. 1 x RGB header. Fan headers and UEFI control options allow compatible case fans and CPU cooling hardware to be configured for balanced temperatures and acoustics.

Core Specification

Networking and Connectivity

Physical and Product Information

Typical Package Contents

• Motherboard
• Quick installation guide or user manual
• SATA data cable(s)
• M.2 mounting hardware

Please note: Processor support, memory speeds, PCI Express lane allocation and M.2 availability can vary according to the installed CPU and BIOS. Check case compatibility for the stated form factor and confirm that the power supply includes the required motherboard and CPU power connectors.
