GIGABYTE 1851 Z890 D PLUS

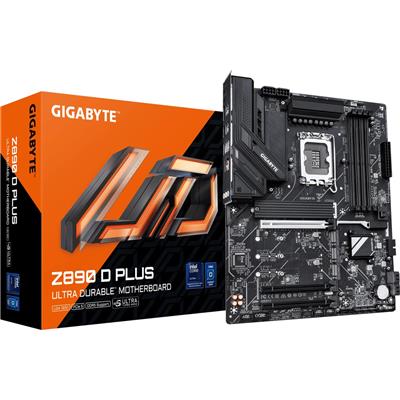

GIGABYTE Z890 D Plus Intel Z890 LGA1851 DDR5 ATX Motherboard

The GIGABYTE Z890 D Plus is a ATX motherboard built around the Intel Z890 chipset and LGA1851 processor socket. It is designed as a dependable foundation for a compatible Intel Core Ultra Series 2 gaming, home, creator or productivity PC.

With DDR5 memory support, 1 x PCIe 5.0 M.2 plus multiple PCIe 4.0 M.2 slots, Realtek 2.5Gb Ethernet and modern PCI Express expansion, this board provides the core connectivity needed for a current custom system.

Key Features

• LGA1851 processor socket with Intel Z890 chipset
• 4 DDR5 memory slots with Up to DDR5-9200 OC support
• Maximum supported memory capacity of 256GB
• 1 x PCIe 5.0 x16 plus PCIe 4.0 expansion
• 1 x PCIe 5.0 M.2 plus multiple PCIe 4.0 M.2 slots
• 4 x SATA 6Gb/s connections
• Realtek 2.5Gb Ethernet
• Realtek 7.1-channel high-definition audio
• ATX form factor
• Q-Flash Plus, AI Perfdrive, EZ-Latch and PCIe 5.0 graphics support

Processor and Chipset Platform

The LGA1851 socket and Intel Z890 chipset support compatible Intel Core Ultra Series 2 processors. CPU compatibility can depend on the installed BIOS revision, so the processor support list should be checked when combining the board with a newly released CPU.

Memory Support

The board provides 4 DDR5 DIMM slots in a dual-channel configuration, supporting up to 256GB. Listed memory capability reaches Up to DDR5-9200 OC. Actual available speeds depend on the installed processor, memory kit, BIOS and selected XMP or EXPO profile.

PCI Express Expansion

1 x PCIe 5.0 x16 plus PCIe 4.0 expansion. This provides a suitable connection for a compatible graphics card while additional slots can support expansion hardware such as capture, sound or networking cards where the board layout allows.

Fast M.2 and SATA Storage

1 x PCIe 5.0 M.2 plus multiple PCIe 4.0 M.2 slots. The board also includes 4 SATA 6Gb/s ports for compatible 2.5 inch SSDs, hard drives and other SATA devices. RAID support for compatible SATA and NVMe storage

Networking and Wireless Connectivity

Wired networking is provided by Realtek 2.5Gb Ethernet. This model is intended for a wired network connection unless a separate wireless adapter is fitted.

Audio and Display Connectivity

Realtek 7.1-channel high-definition audio provides onboard sound for speakers, headsets and gaming audio. Any HDMI or DisplayPort connections on the motherboard require a processor with compatible integrated graphics and do not operate from a CPU that has no integrated display capability.

Cooling, RGB and PC Building Features

Q-Flash Plus, AI Perfdrive, EZ-Latch and PCIe 5.0 graphics support. Addressable RGB support. Fan headers and UEFI control options allow compatible case fans and CPU cooling hardware to be configured for balanced temperatures and acoustics.

Core Specification

Networking and Connectivity

Physical and Product Information

Typical Package Contents

• Motherboard
• Quick installation guide or user manual
• SATA data cable(s)
• M.2 mounting hardware

Please note: Processor support, memory speeds, PCI Express lane allocation and M.2 availability can vary according to the installed CPU and BIOS. Check case compatibility for the stated form factor and confirm that the power supply includes the required motherboard and CPU power connectors.
