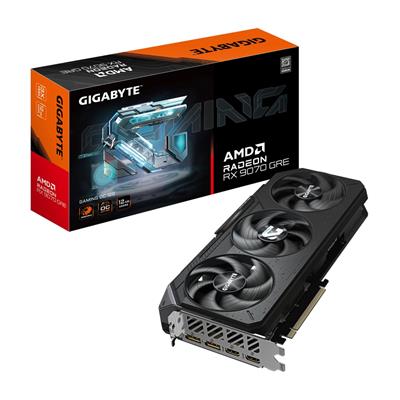

GIGABYTE RX 9070 GRE 12GB GAMING OC

GIGABYTE Radeon RX 9070 GRE Gaming OC 12G Graphics Card

The GIGABYTE Radeon RX 9070 GRE Gaming OC 12G is a powerful AMD graphics card designed for high quality 1440p gaming, high refresh rate monitors and modern gaming PCs.

Powered by the AMD Radeon RX 9070 GRE graphics processor, it features 3,072 stream processors, 12GB of GDDR6 video memory and a factory overclocked boost speed of up to 2,920MHz.

The GIGABYTE WINDFORCE cooling system, reinforced construction, dual BIOS and customisable RGB lighting provide a balanced combination of gaming performance, cooling and durability.

Powerful Radeon RX 9070 GRE Performance

The Radeon RX 9070 GRE is built using AMD RDNA 4 graphics technology and is designed to provide smooth performance in modern games.

Support for advanced ray tracing, AMD FidelityFX Super Resolution, frame generation and AMD HYPR RX technologies can help improve image quality, responsiveness and frame rates in compatible games.

Factory Overclocked Gaming Performance

The Gaming OC edition operates at a boost clock of up to 2,920MHz and an expected game clock of up to 2,340MHz.

Actual operating speeds vary according to game workload, temperature, power availability and system cooling.

12GB GDDR6 Video Memory

The graphics card includes 12GB of GDDR6 memory running at an effective speed of 18Gbps across a 192 bit memory interface.

This provides the capacity and bandwidth required for detailed textures, high resolution gaming, content creation and demanding graphical workloads.

WINDFORCE Cooling System

GIGABYTE’s WINDFORCE cooling system combines Hawk fans, alternate spinning, composite copper heat pipes, a large copper contact plate and screen cooling to move heat away from the graphics processor efficiently.

The alternate spinning design helps reduce turbulence between neighbouring fans and improves airflow pressure through the heatsink.

Hawk Fan Design

The Hawk fan blade design is inspired by the aerodynamics of an eagle’s wing. It is engineered to increase air pressure and airflow while helping keep operating noise under control.

Quiet Semi Passive Cooling

GIGABYTE 3D Active Fan technology allows the cooling fans to stop during low load or low power operation.

The fans automatically restart when additional cooling is required, helping provide quieter operation during light desktop use.

Server Grade Thermal Conductive Gel

Server grade thermal conductive gel is used to cool critical components including the video memory and power delivery hardware.

The flexible material helps maintain effective contact across uneven component surfaces and is designed to resist deformation during transport and long term use.

Large Copper Plate and Heat Pipes

A large copper plate makes direct contact with the graphics processor. Composite copper heat pipes then transfer heat into the heatsink, where it can be dispersed by the WINDFORCE cooling fans.

Screen Cooling

The extended heatsink and ventilated backplate allow air to pass through the rear section of the graphics card instead of becoming trapped inside the cooler.

This helps improve heat dissipation during demanding gaming sessions.

Dual BIOS Operation

A physical BIOS switch allows users to choose between Performance and Silent operating modes.

Performance mode is the factory default and prioritises cooling and performance. Silent mode adjusts operation for a quieter gaming experience.

Customisable RGB Lighting

Integrated RGB lighting supports approximately 16.7 million colours and a variety of lighting effects.

Lighting and compatible GIGABYTE components can be customised and synchronised through GIGABYTE Control Center.

Reinforced Construction

A reinforced metal backplate with a bent edge is securely connected to the input and output bracket, helping improve the structural strength of the graphics card.

A built in power indicator can also flash to alert the user if an abnormal power supply condition is detected.

Flexible Display Connectivity

Two DisplayPort 2.1a connections and two HDMI 2.1b connections provide flexible compatibility with gaming monitors, televisions and multi display setups.

The card supports up to four connected displays and a maximum digital resolution of 7680 x 4320.

Key Features

• AMD Radeon RX 9070 GRE graphics processor
• GIGABYTE Gaming OC factory overclocked design
• 12GB GDDR6 video memory
• 3,072 stream processors
• Boost clock of up to 2,920MHz
• Game clock of up to 2,340MHz
• 18Gbps effective memory speed
• 192 bit memory interface
• PCI Express 5.0 interface
• GIGABYTE WINDFORCE cooling system
• Hawk fan blade design
• Alternate spinning fans
• Quiet semi passive fan operation
• Server grade thermal conductive gel
• Large copper contact plate
• Composite copper heat pipes
• Screen cooling design
• Performance and Silent dual BIOS modes
• Customisable RGB lighting
• Reinforced metal backplate
• Power status indicator
• Two DisplayPort 2.1a connections
• Two HDMI 2.1b connections
• Supports up to four displays
• Maximum digital resolution of 7680 x 4320
• GIGABYTE Control Center support
• Three year warranty

Graphics Specifications

Clock Speeds

Memory Specifications

Display Connections

Power Requirements

Physical Specifications

Package Contents

• GIGABYTE Radeon RX 9070 GRE Gaming OC 12G graphics card
• Quick installation guide

Compatibility note: Check that the computer case provides at least 288 mm of graphics card length clearance, 132 mm of height clearance and sufficient space for a 50 mm thick graphics card.

Power supply note: GIGABYTE recommends a 750W power supply with two available 8 pin PCI Express power connectors. Actual system requirements depend on the processor and other installed components.

Performance note: Maximum boost frequency varies according to temperature, cooling, workload, power availability and individual graphics card characteristics.

Warranty: Three years.
