MSI 750W GOLD F/MODULAR MAG A750GL PCIE5

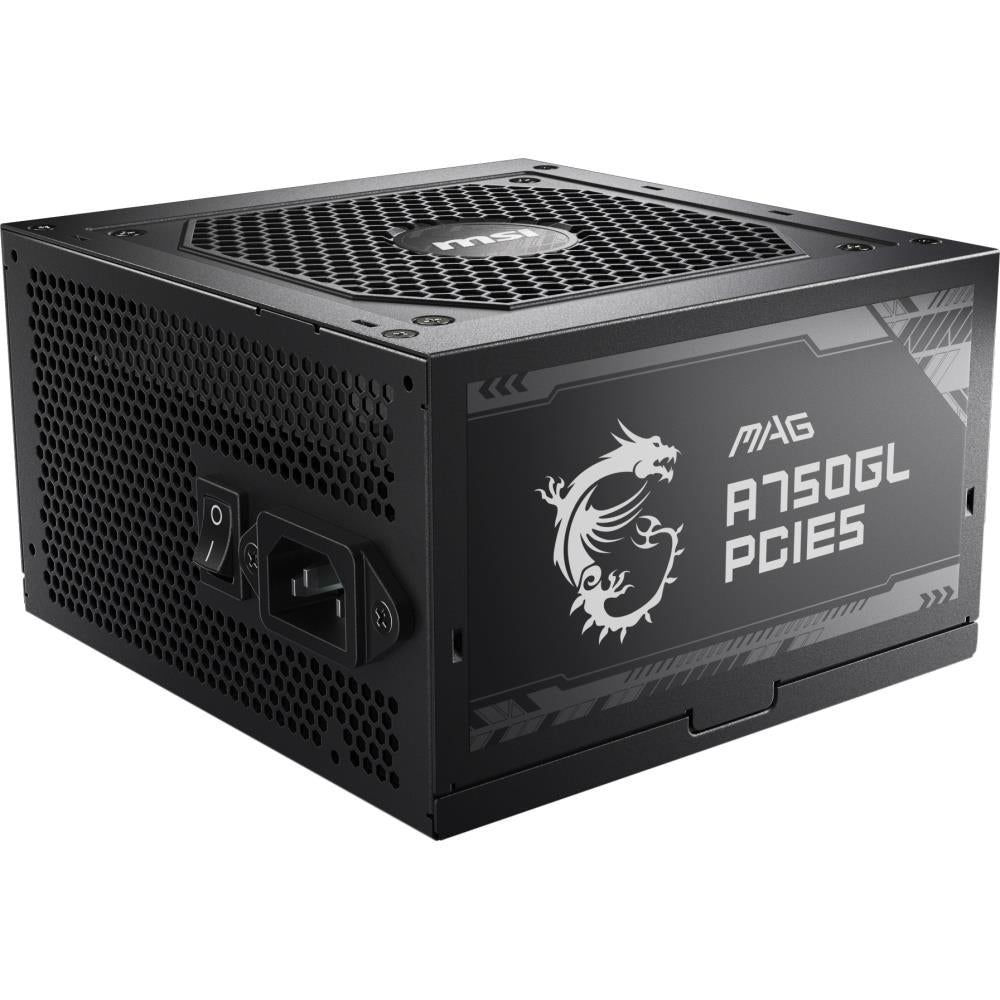

MSI MAG A750GL PCIE5 750W 80 PLUS Gold Fully Modular Power Supply

The MSI MAG A750GL PCIE5 is a 750W power supply designed to deliver stable, efficient power for gaming PCs, creator systems and compatible workstations. Its 80 PLUS Gold rating helps reduce wasted energy and heat, while the fully modular cable system is designed around the needs of the listed model.

ATX 3.1 and PCIe 5.1 ready support makes the unit suitable for compatible current-generation hardware. 1 x native 16-pin PCIe connector rated up to 600W provides graphics-card power for supported configurations, subject to the system's complete power requirement.

Key Features

• 750W continuous power output
• 80 PLUS Gold
• Fully modular
• ATX 3.1 and PCIe 5.1 ready
• 1 x native 16-pin PCIe connector rated up to 600W
• 120mm fluid dynamic bearing fan
• 105°C-rated main capacitor
• Full-bridge LLC and DC-to-DC conversion
• Designed to manage modern CPU and GPU transient power demands
• Over-voltage, under-voltage, over-current, over-power, over-temperature and short-circuit protection
• 10 years manufacturer warranty
• Compact 140mm length and flat modular cabling simplify installation and cable management

Stable Continuous Power

The unit provides up to 750W of continuous output. A power supply should be selected according to the complete system specification, including the processor, graphics card, storage devices, cooling hardware and expected upgrade path.

Efficiency and Reduced Heat

The 80 PLUS Gold certification describes the PSU's energy-conversion efficiency under defined test conditions. Higher efficiency can reduce the amount of electrical energy lost as heat, helping the cooling system operate more effectively.

Modern Graphics-Card Power

1 x native 16-pin PCIe connector rated up to 600W. Where a native 12V-2x6 or 16-pin cable is supplied, it should be inserted fully at both ends and routed without a tight bend immediately beside the connector.

Cable Management

The Fully modular design determines how the cables are connected. Only the required modular cables need to be installed, helping reduce unused cable clutter and improving access within the case.

Cooling and Noise

Cooling is provided by a 120mm fluid dynamic bearing fan. Fan speed and acoustic output vary with temperature, input voltage and power load. Adequate ventilation around the PSU intake and exhaust remains important.

Electrical Design and Reliability

Full-bridge LLC and DC-to-DC conversion. 105°C-rated main capacitor. Over-voltage, under-voltage, over-current, over-power, over-temperature and short-circuit protection help protect the PSU and connected components from abnormal electrical conditions.

System Compatibility

The PSU uses the ATX format and measures 140 x 150 x 86mm. Before ordering, confirm the PC case supports the unit's length and cable-exit position. The motherboard, CPU and graphics-card connector requirements should also be checked against the supplied cable set.

Power and Physical Specification

Power Connections

Protection Features

Over-voltage, under-voltage, over-current, over-power, over-temperature and short-circuit protection. Protection circuits respond to abnormal conditions but do not replace correct installation, suitable mains protection or an appropriately sized PSU.

Ideal For

• Custom gaming PCs
• Creator and streaming systems
• Performance desktop workstations
• PC upgrades requiring dependable power
• Systems using compatible modern graphics cards

Package Contents

• Power supply unit
• UK AC power cable
• Mounting screws
• Product documentation

Please note: PSU cables are not universally interchangeable between different brands or product families. Use only the cables supplied with this exact power-supply model or replacement cables explicitly approved by the manufacturer. Available power on regional mains input can vary on exceptionally high-wattage units.
