MSI RTX 5060 TI 16GB VENTUS 2X OC PLUS

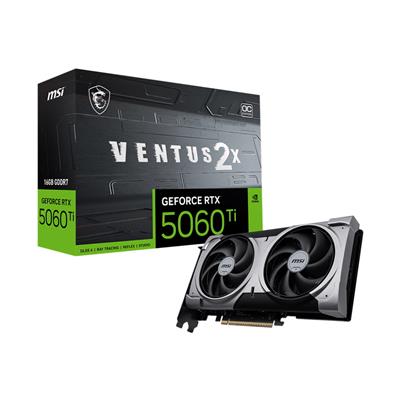

MSI GeForce RTX 5060 Ti Ventus 2X OC Plus 16GB Graphics Card

The MSI GeForce RTX 5060 Ti Ventus 2X OC Plus 16GB Graphics Card is a dedicated graphics card powered by the NVIDIA GeForce RTX 5060 Ti. It combines 16GB GDDR7 with modern display outputs and hardware acceleration for gaming, streaming, creative applications and multi-monitor desktop use.

Key Features

• NVIDIA GeForce RTX 5060 Ti
• 16GB video memory
• GDDR7 memory
• 2602MHz, up to 2617MHz through MSI Center boost clock
• 4608 CUDA cores
• 128-bit memory interface
• PCI Express 5.0 x16, operating at x8 interface
• 7680 x 4320 maximum digital resolution
• 4 supported displays
• 3 x DisplayPort 2.1b
• 1 x HDMI 2.1b
• NVIDIA Blackwell architecture
• DLSS 4
• Dual-fan cooling
• Stormforce fans
• Heatpipe cooling
• Metal backplate
• Zero Frozr semi-passive fan mode
• MSI Center support
• MSI Afterburner support

Graphics Performance

The NVIDIA GeForce RTX 5060 Ti provides dedicated rendering hardware for compatible games and GPU-accelerated applications. Actual frame rates depend on the complete PC specification, game, resolution and selected quality settings.

The card operates with a boost clock of 2602MHz, up to 2617MHz through MSI Center.

Dedicated Graphics Memory

16GB of GDDR7 memory provides dedicated capacity for textures, frame buffers, creative assets and accelerated workloads. The memory uses a 128-bit interface.

Display Connectivity

The available video outputs are 3 x DisplayPort 2.1b, 1 x HDMI 2.1b. The card supports a maximum digital resolution of 7680 x 4320. Up to 4 displays are supported.

Cooling and Software Features

• NVIDIA Blackwell architecture
• DLSS 4
• Dual-fan cooling
• Stormforce fans
• Heatpipe cooling
• Metal backplate
• Zero Frozr semi-passive fan mode
• MSI Center support
• MSI Afterburner support

Power Requirements

The listed board power is 180W. The card uses 1 x 8-pin. The manufacturer recommends a 600W power supply for a suitable complete system.

Graphics Card Specification

Display Outputs

Package Contents

• Graphics card

Warranty and Product Information

Please note: Graphics card compatibility depends on available case clearance, motherboard expansion slots, power supply capacity and the required power connections. Gaming performance varies by system specification, resolution and software settings.
