PALIT 5060 8GB WHITE OC

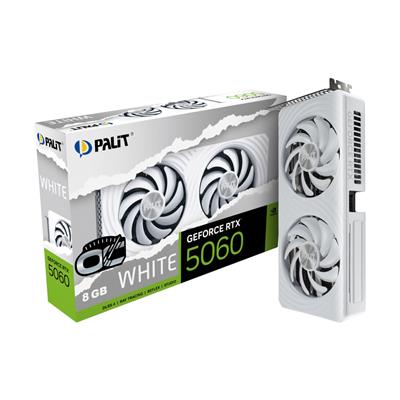

Palit GeForce RTX 5060 White OC 8GB GDDR7 Graphics Card

The Palit GeForce RTX 5060 White OC is a compact white graphics card designed for modern gaming PCs, content creation systems and coordinated white builds.

Powered by the NVIDIA Blackwell architecture, it combines 3,840 CUDA cores with 8GB of high speed GDDR7 memory, fourth generation ray tracing cores and fifth generation Tensor cores. Support for NVIDIA DLSS 4, Reflex 2 and Studio technologies provides advanced gaming, AI and creative capabilities.

Twin 95 mm cooling fans, a compact two slot design and a durable white backplate make the card suitable for a wide variety of cases, including space conscious gaming systems.

NVIDIA Blackwell Architecture

The GeForce RTX 5060 is powered by NVIDIA Blackwell architecture and includes dedicated hardware for ray tracing, artificial intelligence and accelerated creative applications.

Fourth generation ray tracing cores improve the processing of realistic lighting, reflections and shadows, while fifth generation Tensor cores accelerate supported AI features and neural rendering technologies.

NVIDIA DLSS 4

NVIDIA DLSS 4 uses artificial intelligence to improve frame rates and image quality in supported games. Compatible features can include Super Resolution, Ray Reconstruction and Multi Frame Generation, depending on the individual game.

NVIDIA Reflex 2

NVIDIA Reflex technologies are designed to reduce system latency in supported competitive games, helping provide faster response to mouse and keyboard inputs.

8GB High Speed GDDR7 Memory

The graphics card includes 8GB of GDDR7 video memory running at 28Gbps across a 128 bit memory interface.

Memory bandwidth of up to 448GB per second supports detailed game assets, modern graphical effects, content creation and GPU accelerated applications.

Factory Overclocked Performance

The Palit White OC edition reaches a boost clock of up to 2,527MHz, providing increased performance compared with standard reference clock specifications.

Actual operating speeds vary according to temperature, system cooling, workload and available power.

Compact White Two Slot Design

The clean white cooler, matching backplate and subtle RGB lighting make the card an excellent choice for white and colour coordinated gaming PCs.

Measuring 262.1 mm long and occupying two expansion slots, the card provides broad compatibility with compact and standard desktop cases.

Twin 95 mm Fan Cooling

Two large 95 mm fans move air through the heatsink while helping keep operating noise under control.

The cooler uses a copper base and composite heat pipe system to transfer heat away from the graphics processor efficiently during demanding gaming and creative workloads.

Composite Heat Pipe

Palit’s composite heat pipe combines grooved and sintered powder structures to improve thermal transfer through the cooling assembly.

This helps the graphics processor maintain stable performance during sustained workloads.

Quiet 0dB Operation

Palit 0dB technology allows the cooling fans to remain stopped during lighter workloads when active cooling is not required.

The fans automatically start when temperatures or power consumption increase, helping provide quiet operation during everyday desktop use.

Durable White Backplate

The fitted backplate reinforces the graphics card while protecting components and completing its clean white appearance.

Subtle RGB Lighting

Integrated RGB lighting adds customisable illumination without overpowering the card’s minimalist design.

Lighting, fan speeds, operating information and compatible performance settings can be managed through Palit ThunderMaster software.

Palit Maker Support

Palit Maker support allows compatible cosmetic cooler components to be personalised without affecting the graphics card warranty, provided Palit’s applicable guidance is followed.

Creator and Streaming Features

The card includes a ninth generation NVIDIA Encoder with AV1 encoding and a sixth generation NVIDIA Decoder.

NVIDIA Studio drivers, NVIDIA Broadcast and compatible RTX accelerated applications can support video editing, livestreaming, 3D rendering, voice processing and other creative workflows.

Flexible Display Connectivity

Three DisplayPort 2.1b connections and one HDMI 2.1b connection support modern monitors, televisions and multi display setups.

The graphics card supports up to four displays simultaneously and can support resolutions including 4K at up to 480Hz or 8K at up to 120Hz using Display Stream Compression with compatible equipment.

Key Features

• NVIDIA GeForce RTX 5060 graphics processor
• NVIDIA Blackwell architecture
• Palit factory overclocked White OC edition
• 8GB GDDR7 video memory
• 3,840 CUDA cores
• Boost clock of up to 2,527MHz
• Graphics clock of 2,280MHz
• 28Gbps memory speed
• 448GB per second memory bandwidth
• 128 bit memory interface
• Fourth generation ray tracing cores
• Fifth generation Tensor cores
• NVIDIA DLSS 4 support
• NVIDIA Reflex 2 support
• NVIDIA G SYNC support
• AV1 encoding and decoding
• Twin 95 mm cooling fans
• Composite heat pipe cooling
• Copper GPU contact base
• Quiet 0dB fan technology
• DrMOS power delivery
• Subtle RGB lighting
• Palit Maker customisation support
• Compact two slot design
• White protective backplate
• Three DisplayPort 2.1b connections
• One HDMI 2.1b connection
• Supports up to four displays
• PCI Express 5.0 interface
• Palit ThunderMaster support
• Two year warranty

Graphics Specifications

Brand	Palit
Model	GeForce RTX 5060 White OC
Product Code	NE75060U19P1-GB2063M
Distributor SKU	129150
EAN	4710562245677
Graphics Processor	NVIDIA GeForce RTX 5060
Architecture	NVIDIA Blackwell
CUDA Cores	3,840
Ray Tracing Cores	Fourth generation
Tensor Cores	Fifth generation
Graphics Clock	2,280MHz
Boost Clock	Up to 2,527MHz
Bus Interface	PCI Express 5.0
DirectX Support	Microsoft DirectX 12 Ultimate
OpenGL Support	OpenGL 4.6
Vulkan Support	Vulkan 1.4

Memory Specifications

Video Memory	8GB
Memory Type	GDDR7
Memory Speed	28Gbps
Memory Interface	128 bit
Memory Bandwidth	448GB per second

Display Connections

HDMI	1 x HDMI 2.1b
DisplayPort	3 x DisplayPort 2.1b
Maximum Displays	4
Maximum Display Support	4K at up to 480Hz or 8K at up to 120Hz with DSC and compatible equipment

Encoding and Creative Features

NVIDIA Encoder	1 x ninth generation NVENC
NVIDIA Decoder	1 x sixth generation NVDEC
AV1 Encoding	Supported
AV1 Decoding	Supported
Studio Driver Support	Yes

Power Requirements

Graphics Card Power	145W
Recommended System Power	550W
Power Connection	1 x 8 pin PCI Express connector

Physical Specifications

Product Colour	White
Cooling Design	Twin 95 mm fans
Expansion Slot Width	Two slots
Card Dimensions	262.1 x 126.3 x 40.1 mm
Net Weight	Approximately 0.65 kg
Packaged Weight	Approximately 0.96 kg

Package Contents

• Palit GeForce RTX 5060 White OC graphics card

Compatibility note: Check that the computer case provides at least 262.1 mm of graphics card length clearance, 126.3 mm of height clearance and sufficient room for a two slot graphics card.

Power supply note: Palit recommends a system power supply rated at 550W or higher with one available 8 pin PCI Express power connector. Actual requirements depend on the processor and other installed components.

Performance note: Maximum clock speed and gaming performance vary according to workload, temperature, cooling, system configuration and available power.

Display note: Maximum resolution and refresh rate require a compatible display, cable, graphics setting and the use of Display Stream Compression where applicable.

Warranty: Two years.
