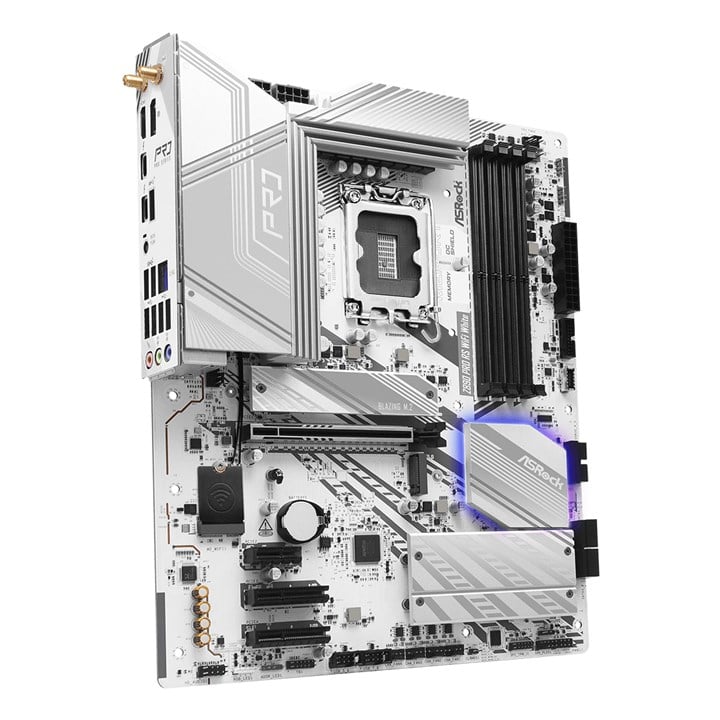

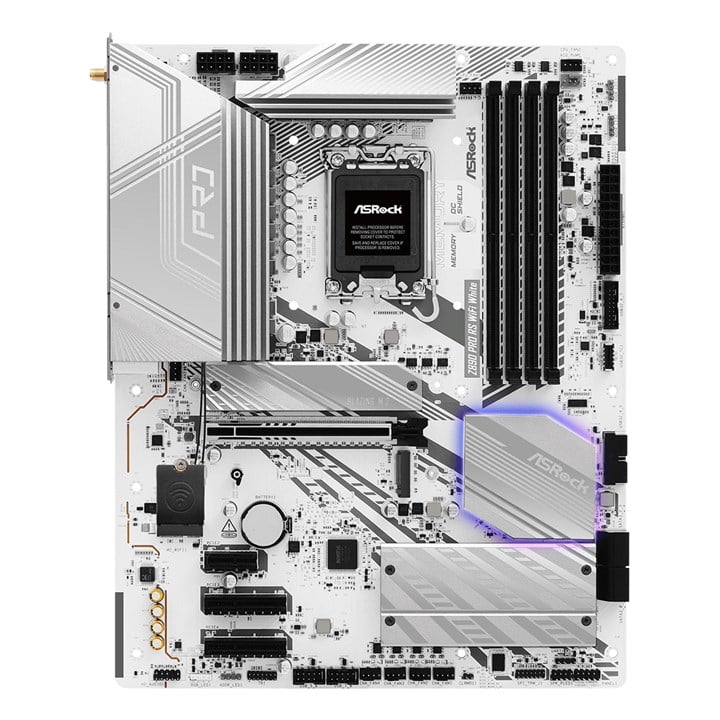

ASRock Z890 Pro RS WiFi ATX Motherboard

ASRock Z890 Pro RS WiFi Intel LGA 1851 ATX Motherboard

The ASRock Z890 Pro RS WiFi is a feature packed ATX motherboard designed for high performance systems powered by Intel Core Ultra Series 2 processors. Built around the Intel Z890 chipset and LGA 1851 socket, it combines powerful processor support, next generation DDR5 memory, PCI Express 5.0 connectivity and extensive storage expansion.

With integrated WiFi 6E, Bluetooth 5.3, Dragon 2.5 Gigabit Ethernet and two rear Thunderbolt 4 ports, the Z890 Pro RS WiFi provides fast and flexible connectivity for gaming, content creation, productivity and advanced desktop builds.

Intel Core Ultra Series 2 Support

The LGA 1851 socket supports compatible Intel Core Ultra Series 2 processors. Its robust 16+1+1+1+1 power phase design with Dr.MOS components helps deliver stable and efficient power to demanding processors.

High Speed DDR5 Memory

Four DDR5 DIMM slots support up to 256GB of dual channel memory. Compatible memory kits can reach speeds of up to 9066+ MHz when overclocked, with support for Intel XMP 3.0 profiles to simplify memory configuration.

PCI Express 5.0 Graphics Support

The primary full length PCI Express slot supports PCIe 5.0 x16, providing high bandwidth connectivity for compatible current and future graphics cards. Additional PCIe 4.0 expansion slots are available for capture cards, storage controllers, sound cards and other expansion devices.

Four M.2 Storage Slots

The motherboard includes four M.2 storage sockets, including one high speed PCIe Gen5 x4 connection and three PCIe Gen4 x4 connections. Four SATA III ports are also available for compatible hard drives and SATA solid state drives.

RAID 0, RAID 1, RAID 5 and RAID 10 configurations are supported for compatible SATA and NVMe storage devices.

Thunderbolt 4 and USB Connectivity

Two rear Thunderbolt 4 USB Type C ports provide transfer speeds of up to 40Gbps and support compatible displays, external storage and docking devices. The motherboard also includes a front panel USB Type C header supporting USB 3.2 Gen 2x2 speeds of up to 20Gbps.

Fast Wired and Wireless Networking

Integrated Dragon 2.5 Gigabit Ethernet provides faster wired networking for online gaming, file transfers, streaming and network storage. WiFi 6E support adds access to compatible 6GHz wireless networks, while Bluetooth 5.3 provides convenient connectivity for wireless peripherals and accessories.

7.1 Channel Audio

The Realtek ALC897 audio codec delivers 7.1 channel high definition audio. Nahimic Audio support provides additional sound customisation for gaming, entertainment and communication.

Flexible Cooling and RGB Support

Multiple CPU, pump and chassis fan headers allow comprehensive control over system cooling. Dedicated 5V addressable RGB and 12V RGB headers can be used with compatible lighting strips, fans and other illuminated components through ASRock Polychrome Sync.

Easy Setup and Troubleshooting

BIOS Flashback allows the motherboard BIOS to be updated using a USB drive and compatible power supply without requiring a processor or memory to be installed. ASRock Post Status Checker indicators can also help identify CPU, memory, graphics and boot related problems during system setup.

Key Features

• Intel Z890 chipset
• LGA 1851 processor socket
• Supports Intel Core Ultra Series 2 processors
• ATX motherboard form factor
• 16+1+1+1+1 power phase design with Dr.MOS
• Four DDR5 memory slots
• Supports up to 256GB DDR5 memory
• Memory speeds up to 9066+ MHz when overclocked
• Intel XMP 3.0 support
• PCI Express 5.0 x16 graphics slot
• Four M.2 storage slots
• PCIe Gen5 x4 M.2 support
• Four SATA III connectors
• RAID 0, 1, 5 and 10 support
• Two rear Thunderbolt 4 USB Type C ports
• Front USB 3.2 Gen 2x2 Type C header
• Dragon 2.5 Gigabit Ethernet
• WiFi 6E wireless networking
• Bluetooth 5.3
• Realtek ALC897 7.1 channel audio
• Nahimic Audio support
• HDMI and DisplayPort video outputs
• BIOS Flashback button
• ASRock Post Status Checker
• ASRock Polychrome Sync RGB support

Processor and Chipset

Memory Specifications

Expansion and Storage

Networking and Audio

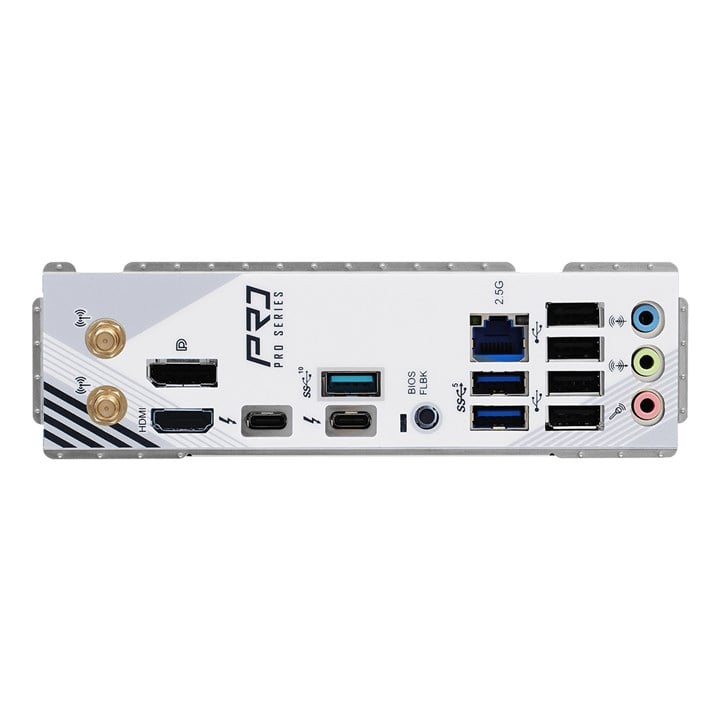

Rear Connectivity

• 2 x Thunderbolt 4 USB Type C ports
• 1 x USB 3.2 Gen 2 Type A port
• 2 x USB 3.2 Gen 1 Type A ports
• 4 x USB 2.0 ports
• 1 x HDMI port
• 1 x DisplayPort 1.4
• 1 x 2.5 Gigabit Ethernet port
• 3 x audio connections
• 2 x wireless antenna connections
• 1 x BIOS Flashback button

Dimensions

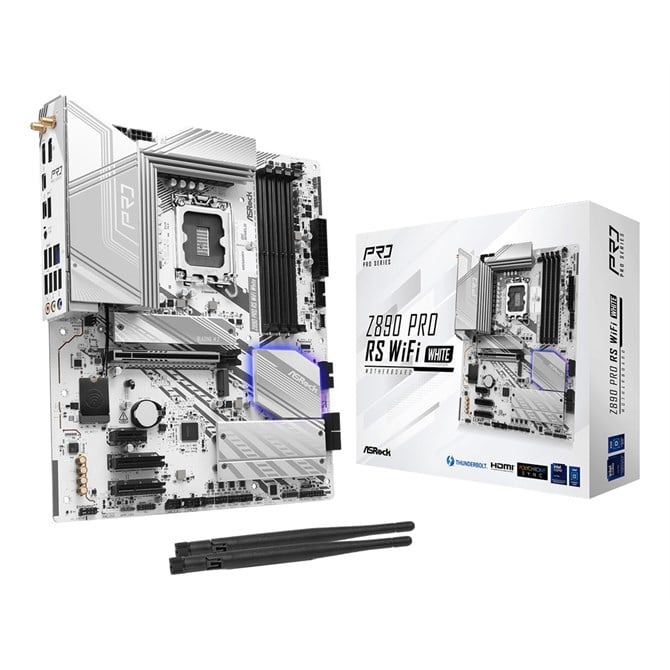

Package Contents

• ASRock Z890 Pro RS WiFi motherboard
• WiFi antennas
• SATA data cables
• M.2 screw
• M.2 standoff

Compatibility note: This motherboard requires an Intel LGA 1851 processor and DDR5 desktop memory. Memory overclocking speeds depend on the processor, memory kit, BIOS version and system configuration. Display outputs require a processor with compatible integrated graphics.
