ROG ERGO MONITOR

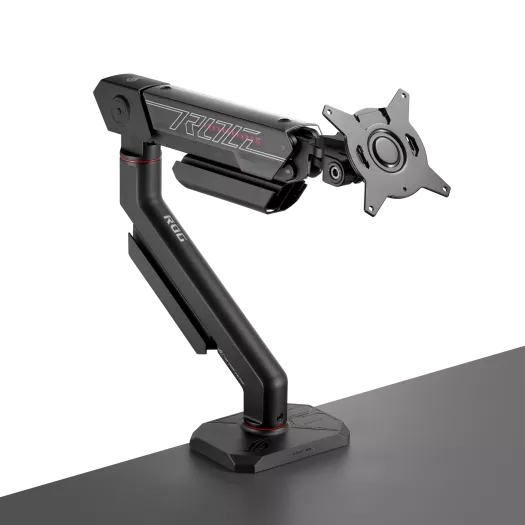

ASUS ROG Ergo Monitor Arm AAS01R for Displays Up to 49 Inches

The ASUS ROG Ergo Monitor Arm AAS01R is a premium adjustable desk mount designed for compatible flat and curved monitors up to 49 inches. It helps reclaim desk space and allows the display to be positioned at a comfortable height, distance and angle.

A mechanical spring system provides smooth movement, while desk-clamp and grommet mounting options support different desk layouts. Double-sided cable management and a distinctive ROG design help create a clean gaming or working setup.

Key Features

• Supports selected monitors up to 49 inches
• Supports flat monitors weighing 3 to 13.5kg
• Supports curved monitors weighing 3 to 10.5kg
• 100 x 100mm VESA mounting support
• Mechanical spring adjustment system
• Height, tilt, swivel, pivot, rotation and reach adjustment
• Desk clamp and grommet mounting options
• Double-sided cable management
• Adjustable tilt-head tension for ultrawide displays
• Tested through 10,000 movement cycles

Wide Monitor Compatibility

The AAS01R is designed for a wide range of conventional and ultrawide displays. It supports flat monitors between 3 and 13.5kg and curved monitors between 3 and 10.5kg, using a standard 100 x 100mm VESA mounting pattern.

Full Range of Adjustment

A mechanical spring system allows smooth height, tilt, swivel, pivot, rotation and distance adjustment. The arm provides up to approximately 63.8cm of extension and approximately 49.98cm of maximum height, helping users create a comfortable viewing position.

Desk Clamp or Grommet Installation

The detachable mounting design supports both desk-clamp and grommet installation. ASUS lists desk-clamp compatibility for desk thicknesses from 10 to 80mm and grommet compatibility for thicknesses from 0 to 45mm.

Cable Management and Durability

Double-sided cable-management channels help route display and power cables along the arm. ASUS also subjects the design to a 10,000-cycle range-of-motion test to support long-term everyday use.
